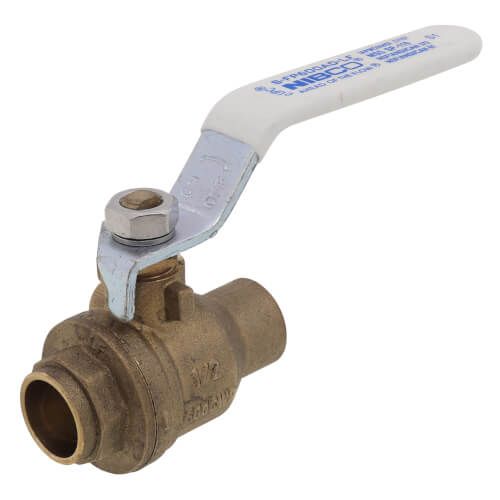

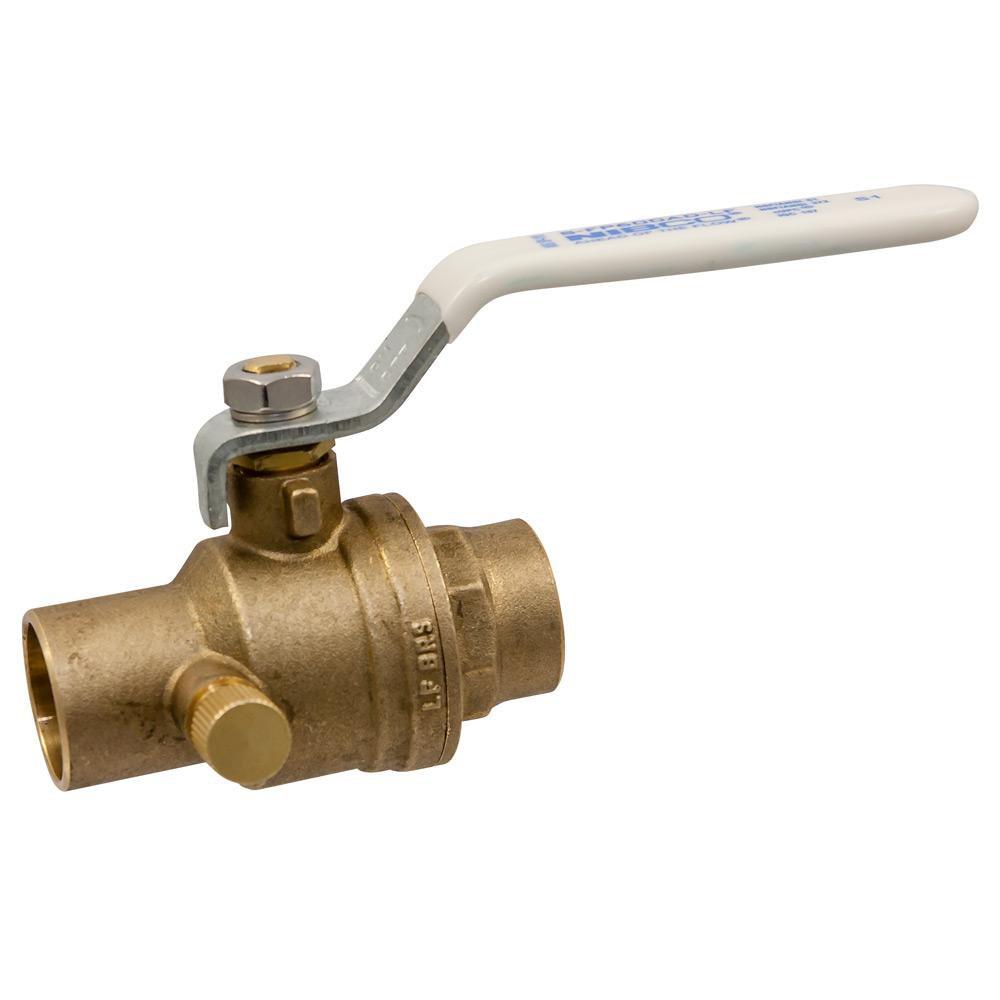

Nibco NJ999X6 S-FP-600-AD-LF 1/2 in. DZR Copper Alloy Full Port Solder 600# Ball Valve

Product Description

The NIBCO NJ999X6 is a lead-free brass ball valve designed for reliable operation in hot and cold water applications. It features a quarter-turn design for easy open and close functionality. The two-piece construction includes solder end connections for straightforward installation. This valve is ideal for various plumbing tasks in both residential and commercial settings.

• Quarter-turn valve operation for easy use
• Brass body ensures high corrosion resistance
• Includes drain port for effective system maintenance

Product Highlights

This valve is beneficial in installations requiring quick access to drain water. Its design allows for a full port flow, making it suitable for high-efficiency systems.

Product Information

Standard Information

• Type: 2-Piece
• Media: Gas/Water

Technical Specifications

• Ball Material: Brass
• Body Material: Brass
• Nominal Size: 1/2 in
• Pressure Rating: 600 psi
• Orifice Size: 0.63 in
• Inlet to Outlet Length: 1.97 in
• Top to Inlet Center: 3.74 in
• Trim Material: Brass Stem and PTFE Ball Seat
