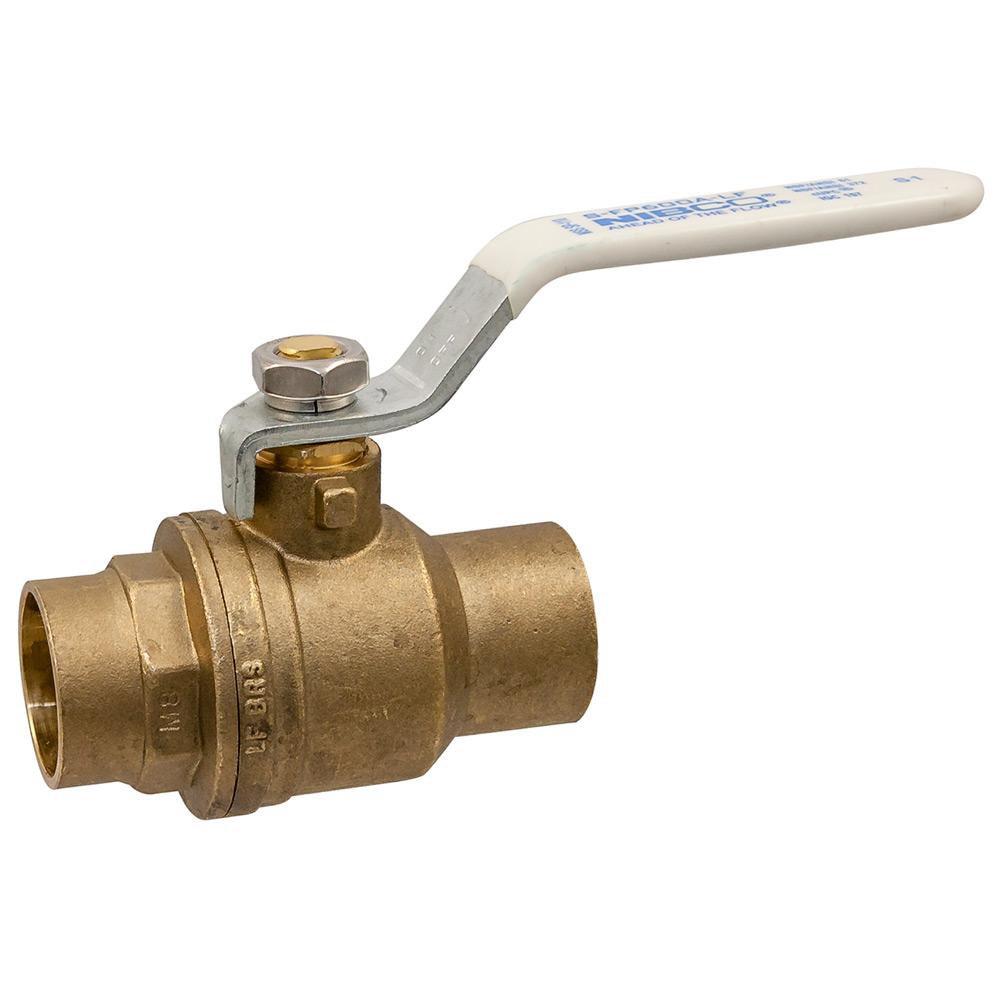

NIBCO NJ998X6 S-FP-600A-LF 1/2 in Full Port Female Solder 600# Ball Valve

Product Description

The NIBCO NJ998X6 is a lead-free brass ball valve designed for various plumbing applications. This valve features a full-port design providing a smooth flow of water. It is equipped with a standard lever handle for easy operation. The solder end connections allow for reliable installation in residential and commercial settings.

• Lead-free brass construction.
• Pressure rating of six hundred psi.
• Ideal for hot and cold water applications.

Product Highlights

This NIBCO ball valve is known for its durability and reliability. It is suitable for water media and offers a straightforward shutoff mechanism.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NJ998X6

Technical Specifications

• Type: 2-Piece, Full-Port
• Nominal Size: 1/2 in
• Material: Brass
• Pressure Rating: 600 psi
• End Style: Solder Female
• Media: Water
• Orifice Size: 0.63 in
• Inlet to Outlet Length: 1.97 in
• Top to Inlet Center: 3.74 in
• Actuator Type: Standard Lever Handle
• Body Material: Brass
• Ball Material: Polished Chrome Brass
• Softgoods Material: Fluorocarbon/PTFE
• Trim Material: Brass Stem and PTFE Ball Seat
• Domestic/Import: Import
• Standards/Certifications: IAPMO Listed, NSF/ANSI 61-8/372
