Product Description

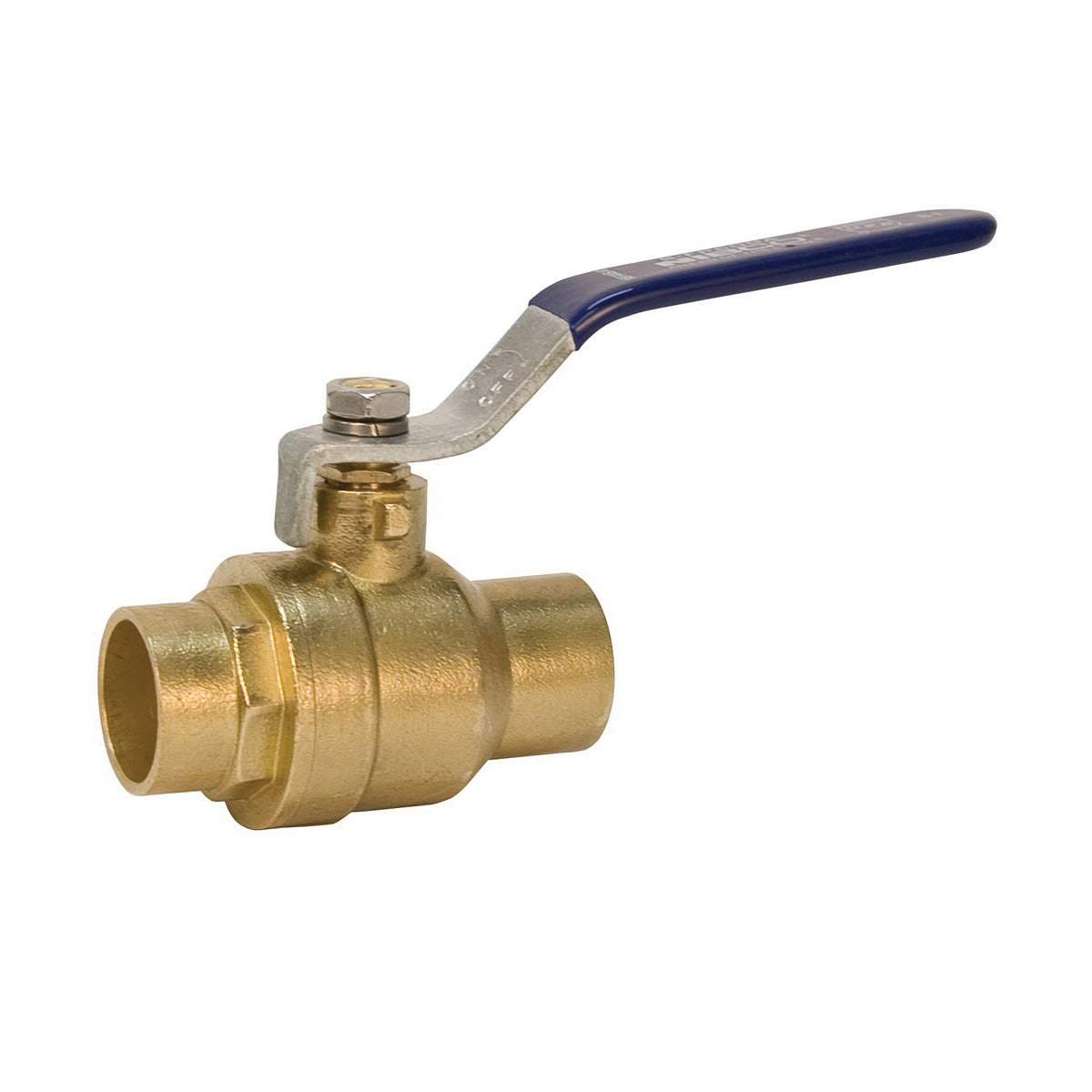

The NIBCO brass ball valve with the MPN NJ998HB features solder end connections for a bubble-tight shut-off. The design includes PTFE seats and a hard chrome-plated brass ball that ensures high chemical resistance. This valve suits both hot and cold water as well as gas applications. Operation is straightforward with a quarter-turn mechanism, which moves from open to close easily. The solder end connections allow for efficient installation.
- Pressure rating of 600 psi
- Full port design for maximum flow
- Durable brass body with fluorocarbon/PTFE softgoods
Product Highlights
Choose the NIBCO ball valve for reliable performance in both residential and commercial systems. This valve is backed by a two-year limited warranty from NIBCO Inc.
Product Information
Standard Information
-
Manufacturer: NIBCO Inc.
-
Part Number: NJ998HB
Technical Specifications
-
Type: 2-Piece
-
Media: Gas/Water
-
Nominal Size: 1-1/4 in
-
Orifice Size: 1.26 in
-
Actuator Type: Standard Lever
-
Ball Material: Chrome Plated Brass
-
Body Material: Brass
-
Trim Material: Brass Stem and PTFE Ball Seat
-
Pressure Rating: 600 psi
-
Softgoods Material: Fluorocarbon/PTFE
-
Inlet to Outlet Length: 3.78 in
-
Top to Inlet Center: 2.65 in
-
Domestic/Import: Import
