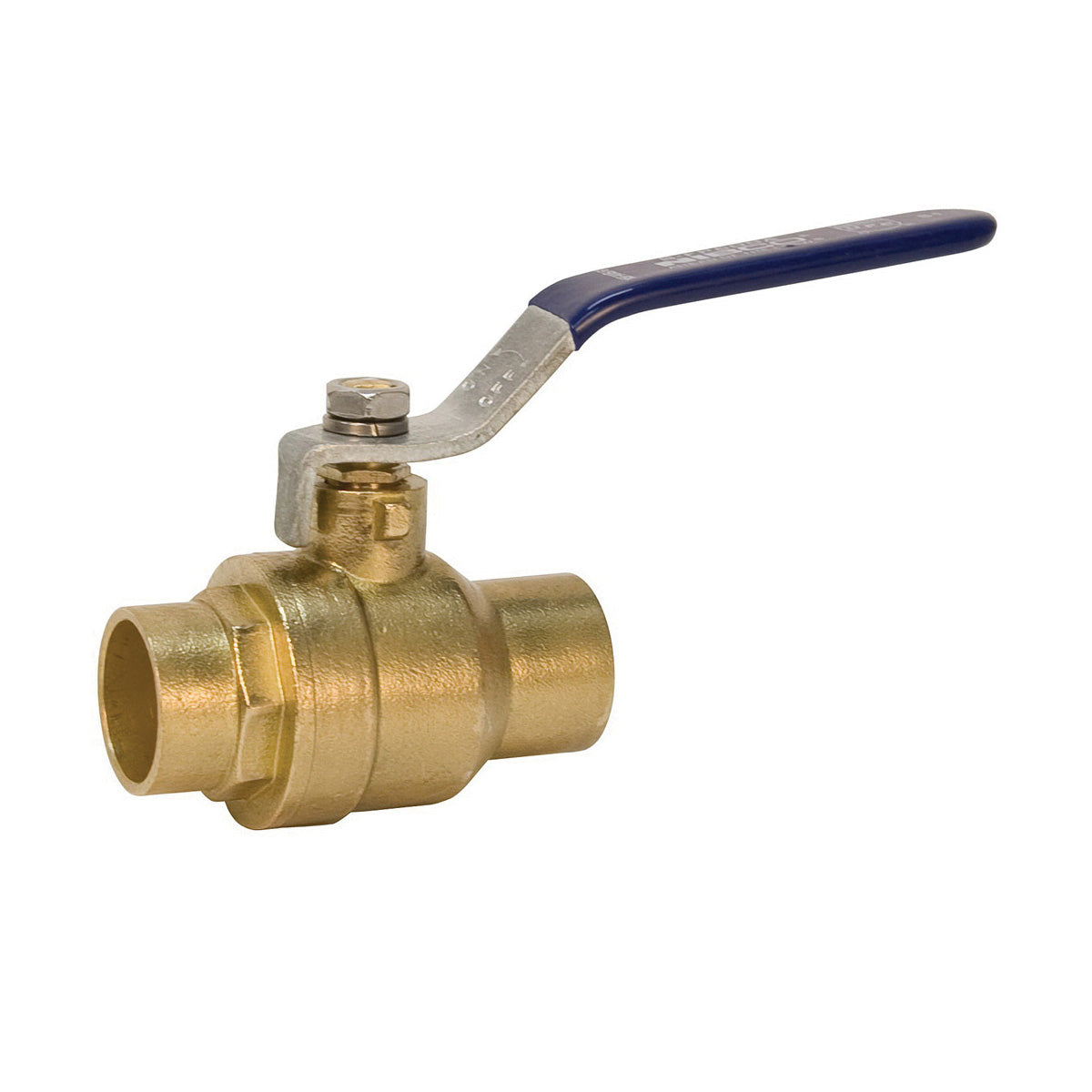

NIBCO NJ998H8 2-Piece Ball Valve 3/4 in Nominal Solder Female End Style Replacement MPN

Product Description

NIBCO NJ998H8 is a 2-piece ball valve designed for solder end connections. It offers reliable shut-off with PTFE seats and a chrome-plated brass ball, which enhances chemical resistance. This valve is suitable for both hot and cold water as well as gas applications. The quarter-turn mechanism allows for easy operation from open to close. This valve is built for straightforward installation and is backed by a two-year warranty from NIBCO.

• Full port for maximum flow
• Standard lever actuator for ease of use
• Ideal for gas and water applications

Product Highlights

This valve is configured with a solder female end that simplifies installation.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Series: S-FP-600A

Technical Specifications

• Type: 2-Piece
• Media: Gas/Water
• Nominal Size: 3/4 in
• Orifice Size: 3/4 in
• Pressure Rating: 600 psi
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: Solder Female
• Inlet to Outlet Length: 2.74 in
• Top to Inlet Center: 2.13 in
• Softgoods Material: Fluorocarbon/PTFE
• Domestic/Import: Import
