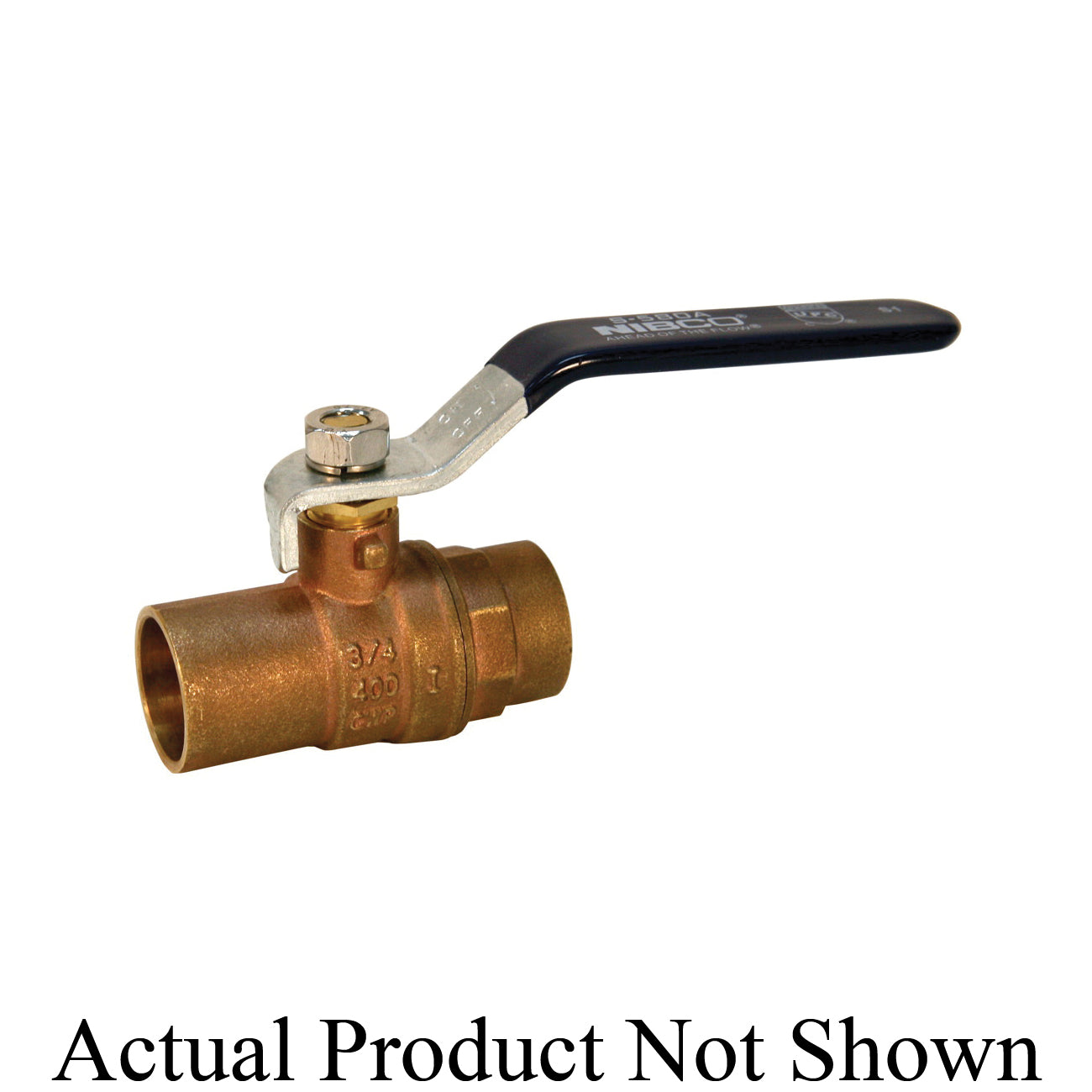

NIBCO NJ9600B 2-Piece Ball Valve 1-1/4 in Nominal Solder End Style Brass Body Standard Port

Product Description

The NIBCO brass Ball Valve NJ9600B is designed for ease of operation with a quarter-turn opening. This two-piece valve features solder end connections for straightforward installation. Refer to the NIBCO technical data sheet and valve selection guide for comprehensive information.

• Quarter-turn operation for easy valve management.
• Constructed with polished chrome brass and features solder ends.
• Available for both gas and water media.

Product Highlights

Choose NIBCO Ball Valves for a versatile and economical option suitable for various applications in both commercial and residential sectors.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Part Number: 319719

Technical Specifications

• Series: S-580-A
• Type: 2-Piece
• Nominal Size: 1-1/4 in
• Orifice Size: 0.98 in
• Pressure Rating: 400 psi
• Inlet to Outlet Length: 3.49 in
• Top to Inlet Center: 2.54 in
• Media: Gas/Water
• End Style: Solder
• Actuator Type: Standard Lever Handle
• Body Material: Brass
• Ball Material: Polished Chrome Brass
• Trim Material: Brass Stem
• Domestic/Import: Import
• Softgoods Material: Fluorocarbon/PTFE
