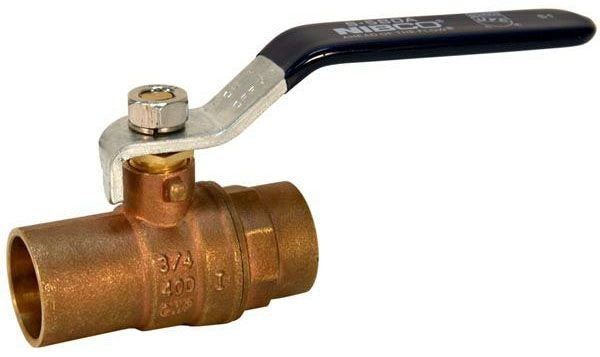

Nibco NJ96008 S-580-A 2-piece Ball Valve 3/4 in Solder

Product Description

The NIBCO NJ96008 is a 2-piece ball valve in the S-580-A series, designed for shut-off service in hot and cold water and gas applications. The valve features a brass body, polished chrome brass ball, and brass stem trim with Fluorocarbon/PTFE softgoods for reliable sealing. It carries a 400 psi pressure rating and a standard port with a 0.59-inch orifice. The standard lever handle actuator allows quick quarter-turn operation. At 2.5 inches from inlet to outlet and 1.79 inches from top to inlet center, this valve fits into compact piping assemblies. Licensed plumbers and HVAC technicians are the typical installers.

The NJ96008 is suited for residential and light commercial plumbing and gas piping systems where a reliable solder-end shut-off is required. The solder end connection integrates directly into copper pipe runs, making it a common choice for domestic water distribution, hydronic heating loops, and gas supply branches. Note: Per California Section 116875, this valve is not approved for use in potable drinking water service.

Key Features

• 400 psi pressure rating suitable for water and gas shut-off service
• Solder end connection for direct integration into copper piping systems
• Polished chrome brass ball with standard port and 0.59-inch orifice
• Fluorocarbon/PTFE softgoods for durable, low-friction sealing
• Standard lever handle for quick quarter-turn operation
• 2-piece body design allows in-line maintenance access

Compatibility

Designed as an OEM-style replacement or new-installation shut-off valve for 3/4-inch copper solder-end piping in hot and cold water and gas applications. Not for use in potable drinking water service per California Section 116875.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable local codes and the International Plumbing Code (IPC) or International Fuel Gas Code (IFGC) as appropriate. Shut off the water or gas supply and depressurize the line before beginning work. Ensure the pipe end is clean, deburred, and properly fluxed before soldering to achieve a leak-free joint. Do not apply heat directly to the valve body during soldering; use a heat sink or limit torch exposure to protect internal softgoods.
