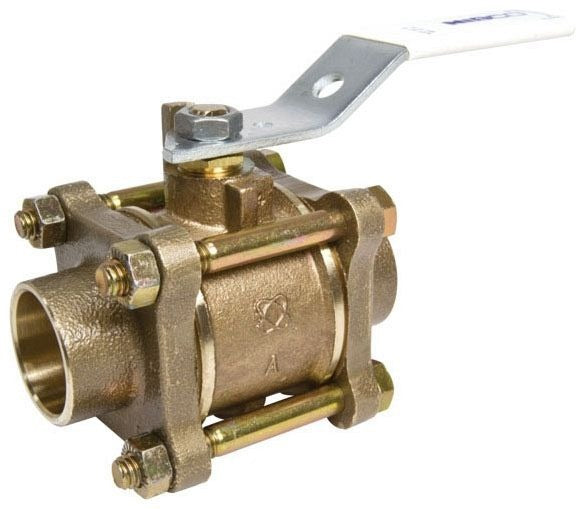

Nibco NJ9302C 3-piece Ball Valve 1-1/2 in Solder Full Port

Product Description

The NIBCO NJ9302C is a 3-piece, full-port ball valve in the S-595-Y-LF series, built for plumbing systems where lead-free construction is required for potable water service. The body, ball, and stem trim are all silicon bronze, rated to 600 psi and 300 degrees F. The solder end connection suits copper pipe systems common in residential and commercial construction. A standard lever actuator provides quarter-turn shutoff. This valve complies with California Section 116875 of the California Health and Safety Code for drinking water applications and is domestically manufactured.

The NJ9302C is designed for potable water systems in both residential and commercial construction, including applications requiring lead-free components under NSF and state drinking water regulations. The 1-1/2 inch nominal size with a full 1-1/2 inch orifice minimizes flow restriction, making it well suited for main supply lines, branch isolations, and equipment shutoff service. The solder end style integrates directly with standard copper pipe runs.

Key Features

• Full-port design with 1-1/2 inch orifice for unrestricted flow
• Silicon bronze body, ball, and stem trim for lead-free, corrosion-resistant construction
• 600 psi pressure rating supports demanding residential and commercial service conditions
• 300 degrees F temperature rating accommodates hot water system applications
• FKM/PTFE/RPTFE softgoods package for chemical compatibility and long-term seal integrity
• 3-piece construction allows in-line service and seat replacement without removing the valve body
• Domestically manufactured and compliant with California drinking water standards for human consumption

Compatibility

Designed for use in potable water systems requiring lead-free ball valves with solder end connections, including residential and commercial construction applications subject to California Section 116875 of the California Health and Safety Code.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and relieve system pressure before beginning work. When soldering, use care to avoid overheating the valve body and softgoods — remove or protect the ball and seats if extended heat application is required. Confirm flow direction and lever orientation before completing the final joint.
