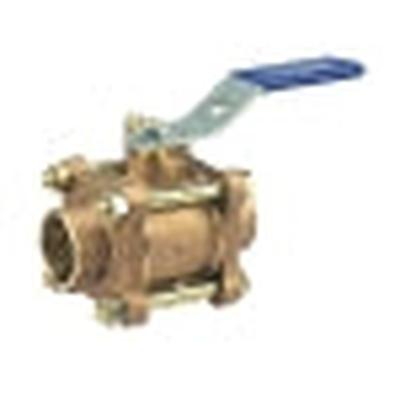

NIBCO NJ9300A 3-Piece Ball Valve 1 in Nominal Solder End Style Full Port

Product Description

The NIBCO bronze ball valve, model NJ9300A, has solder end connections designed for easy installation. This three-piece valve is suitable for hot and cold water applications, gas, compressed air, vacuum service, and chilled water systems. It can also function for isolation and throttling in pipelines. The valve allows for inline repairs.

• Valve operates with a quarter-turn for open and close.
• Bubble-tight shut-off at six hundred psi.
• Contains high chemical resistance properties.

Product Highlights

NIBCO valves offer reliable performance and are ideal for commercial, mechanical, and industrial use. This valve is constructed for durability and is backed by a five-year warranty.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Type: 3-Piece

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: Brass
• Body Material: Bronze
• Pressure Rating: 600 psi
• Nominal Size: 1 in
• Orifice Size: 1 in
• End Style: Solder
• Temperature Rating: 400 deg F
• Inlet to Outlet Length: 3.66 in
• Top to Inlet Center: 2-1/4 in
• Softgoods Material: PTFE/Fluorocarbon Rubber
• Series: S-595-Y
