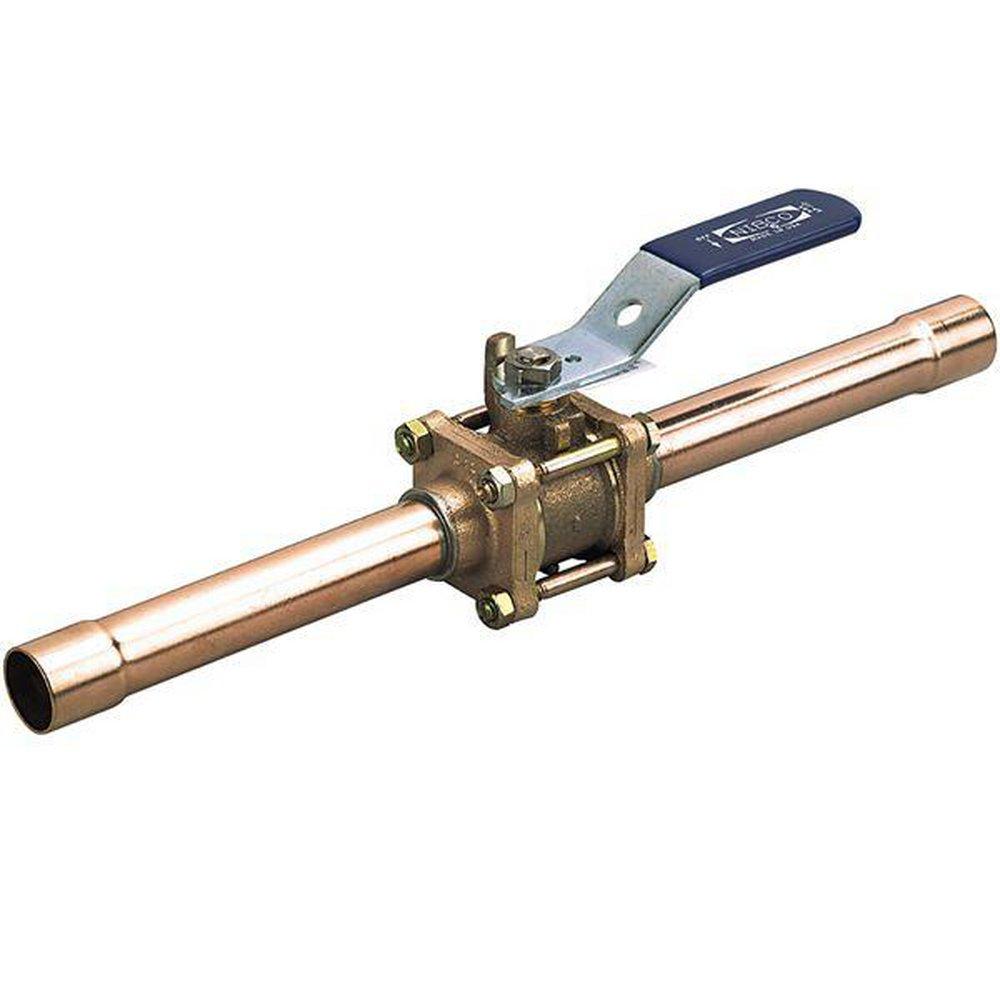

NIBCO NJ921A8 CS-595-YX-EC 3/4 in Bronze Copper Stub Lever Handle Gas Ball Valve

Product Description

The NIBCO NM921A8 is a 3/4 inch bronze copper stub lever handle gas ball valve. This valve is designed for high-pressure applications, particularly for medical gas systems.

• Dezincification resistant construction
• Pressure rating of 600 psi for non-shock cold working
• Temperature rating up to 400 degrees Fahrenheit

Product Highlights

This NIBCO valve provides a reliable solution for demanding applications in gas systems.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Model: CS-595-YX-EC

Technical Specifications

• Type: 3-Piece
• Media: Medical Gas
• Nominal Size: 3/4 inch
• Pressure Rating: 600 psi
• Ball Material: Polished Chrome Brass
• Body Material: Bronze
• Trim Material: Silicon Bronze Stem
• Actuator Type: Locking Lever Handle
• Temperature Rating: 400 degrees Fahrenheit
• Inlet to Outlet Length: 13.41 inches
• Top to Inlet Center: 2 inches
• End Style: Copper Stub
• Port Type: Full
• Packaging Material: PTFE
• Standards/Certifications: MSS SP-110 certified
