NIBCO NJ921A6 CS-595-YX-EC 1/2 in Bronze Copper Stub Lever Handle Gas Ball Valve

Product Description

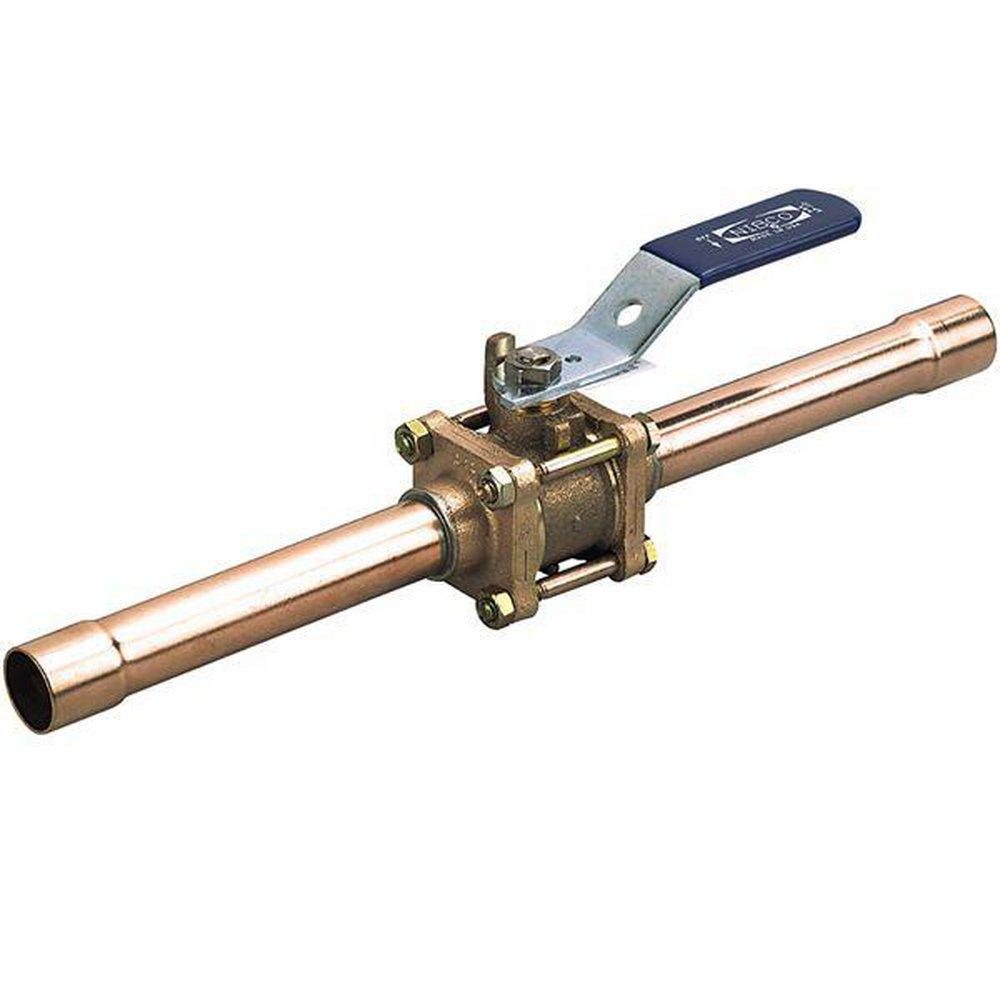

The NIBCO NJ921A6 is a bronze ball valve designed for gas service with a copper stub end connection. This valve provides reliable performance in high-pressure medical gas applications. The valve features a 600 PSI pressure rating and operates with a quarter-turn handle for easy open and close functionality. Constructed with a polished chrome brass ball and a silicon bronze trim, it helps ensure long service life and resistance to dezincification.

• Designed for medical gas applications
• Blowout-proof stem for increased safety
• Full port for maximum flow

Product Highlights

The valve is cleaned and bagged for medical gas applications, complying with NFPA99 and CGA pamphlet G-4-1.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Type: 3-Piece Ball Valve

Technical Specifications

• Nominal Size: 1/2 in
• Pressure Rating: 600 PSI
• Temperature Rating: 400 deg F
• Body Material: Bronze
• Ball Material: Polished Chrome Brass
• Softgoods Material: PTFE/Fluorocarbon Rubber
• Inlet to Outlet Length: 13.11 in
• Top to Inlet Center: 1.69 in
• End Style: Copper Stub
• Trim Material: Silicon Bronze Stem
