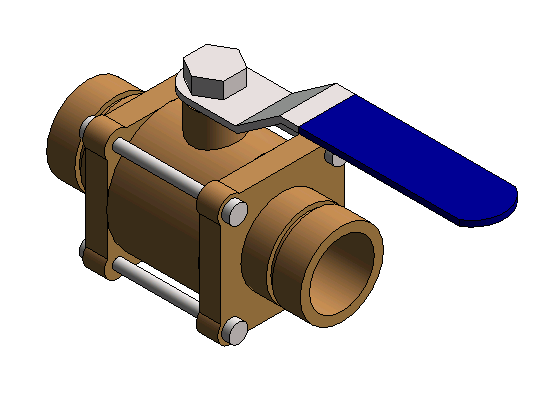

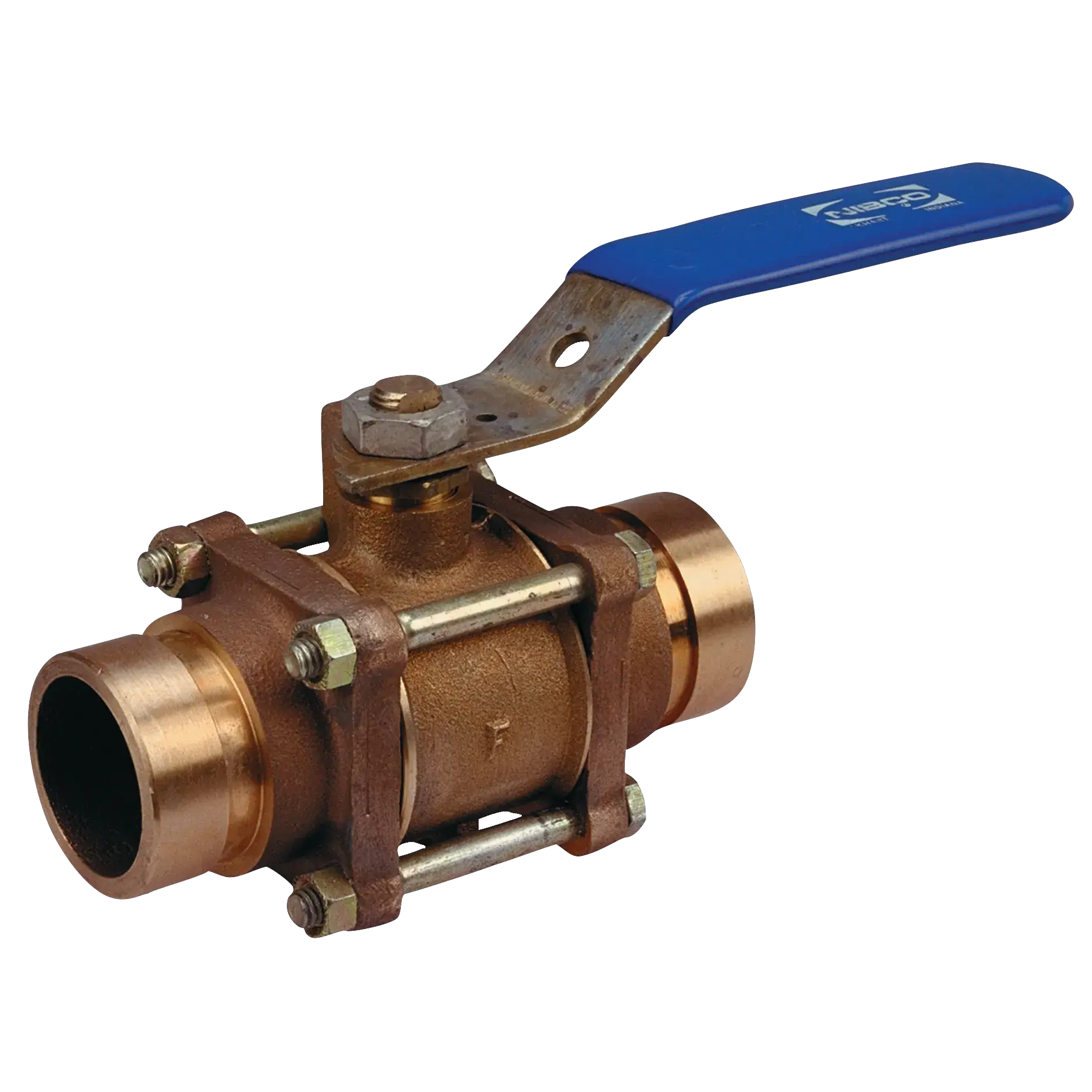

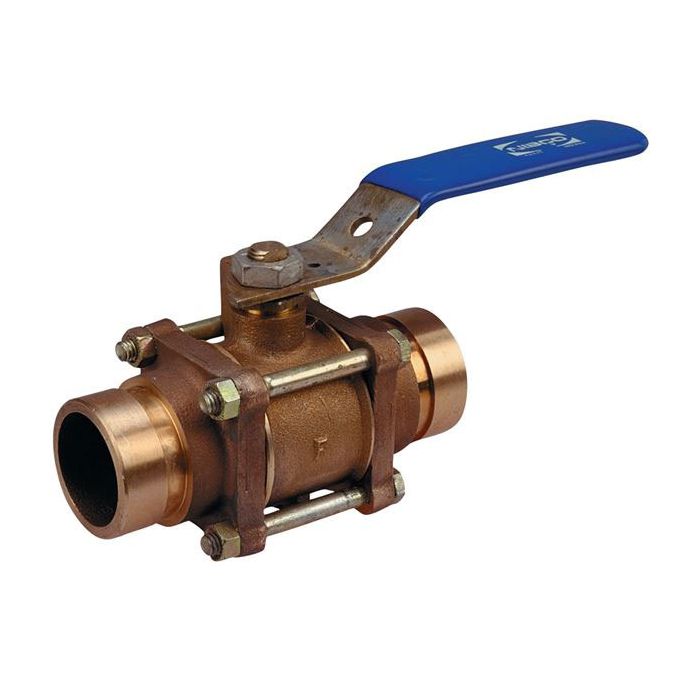

Nibco NJ8700D G-595-Y Three-Piece Bronze Ball Valve Full Port, Grooved End Connections

Product Description

The NIBCO bronze ball valve NJ8700D provides ease of operation with quarter-turn (90 degrees) open to close. The PTFE seat ring and brass hard chrome plated ball exhibits high chemical resistance properties and is recommended for many high pressure applications. The three-piece valve features IPS grooved ends for easy installation.

• Bubble-tight shutoff at 600 PSI
• Ideal for hot/cold water, numerous gas applications, compressed air, vacuum service, condenser and chilled water
• May be used for isolation and throttling (half open to full open only)

Product Highlights

This ball valve is suitable for isolation and throttling, featuring a full port and grooved end connections. It is designed for use in various applications, including hot and cold water, gas, and compressed air.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NJ8700D
• Country of Origin: US

Technical Specifications

• UPC Code: 039923686404
• Type: Ball Valve
• Valve Size: 2 in
• Body Material: BRZ Cast Bronze
• Seat Material: PTFE
• Seal Material: PTFE
• Stem Material: Silicon Bronze
• Cold Working Pressure: 41.4 bar
• Operation Type: CS Standard Lever Handle
• Connection Type: G - Grooved
• Ball Material: BRZ - Bronze
• Flow Coefficient: 245
• Valve Ball Body Type: Three-Piece
• Turns / Operation: Quarter-Turn
• Valve Ball Port Style: Full Port
• Maximum temperature rating: 400 F
• Port: Full port
• Ball: Chrome plated brass ball
• Stem Design: Blowout-proof stem
• Handle: Standard lever handle, optional NIB-SEAL
• End Connections: IPS grooved end connections
• Resistant: Dezincification resistant
• Standards: Conforms to MSS SP-110
• Ball Finish: Chrome Plated
• Ball Stem Material: Bronze
• End Connection Type: G Grooved
• Pressure Rating (cwp): 600 psi CWP
• Series: G-595-Y Series
• Trim Package: Bronze
• Type Of Valve: Ball
• Manufacturer: Nibco
• MPN: NJ8700D
• Nominal Pipe Size: 2"
