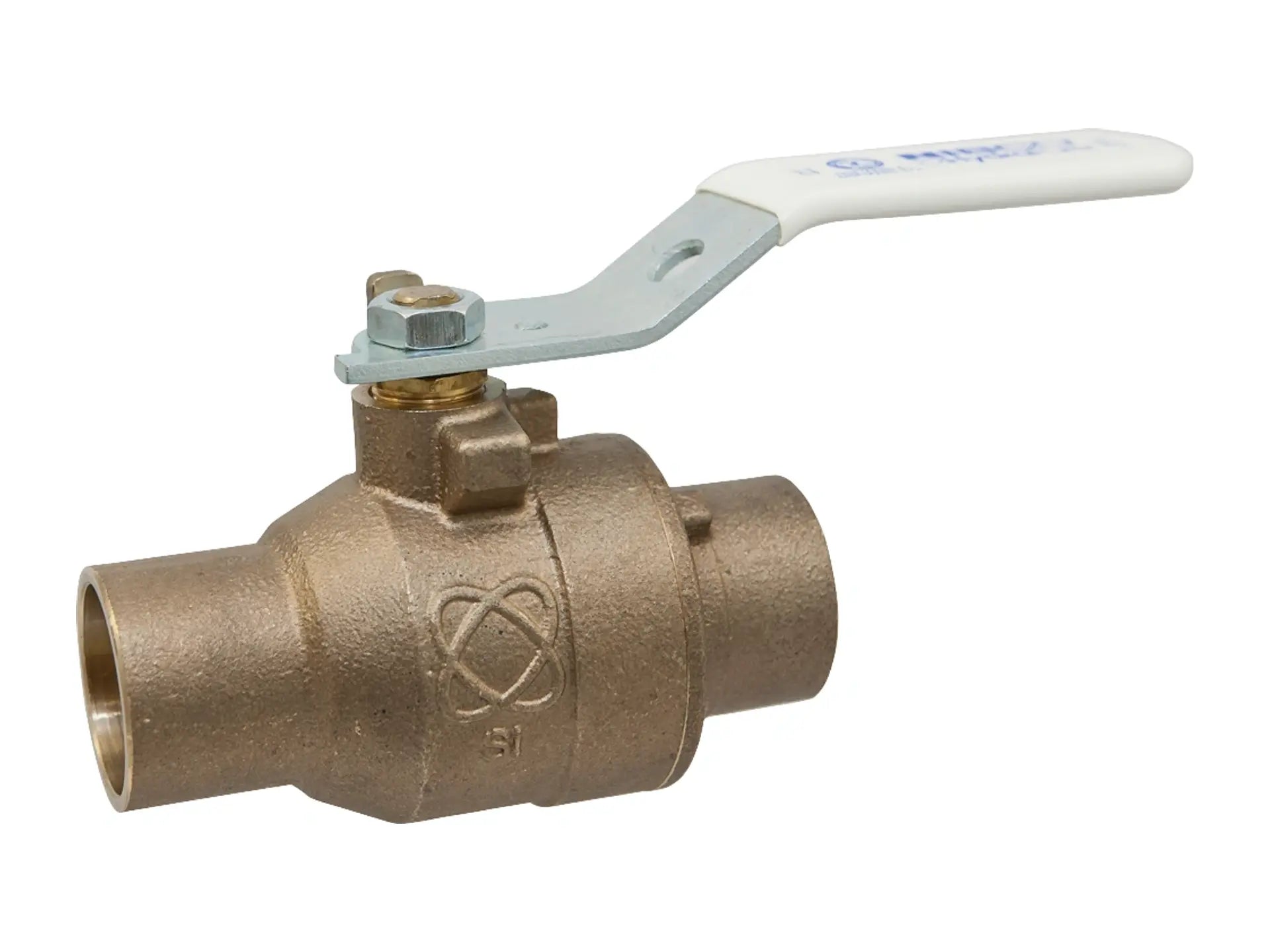

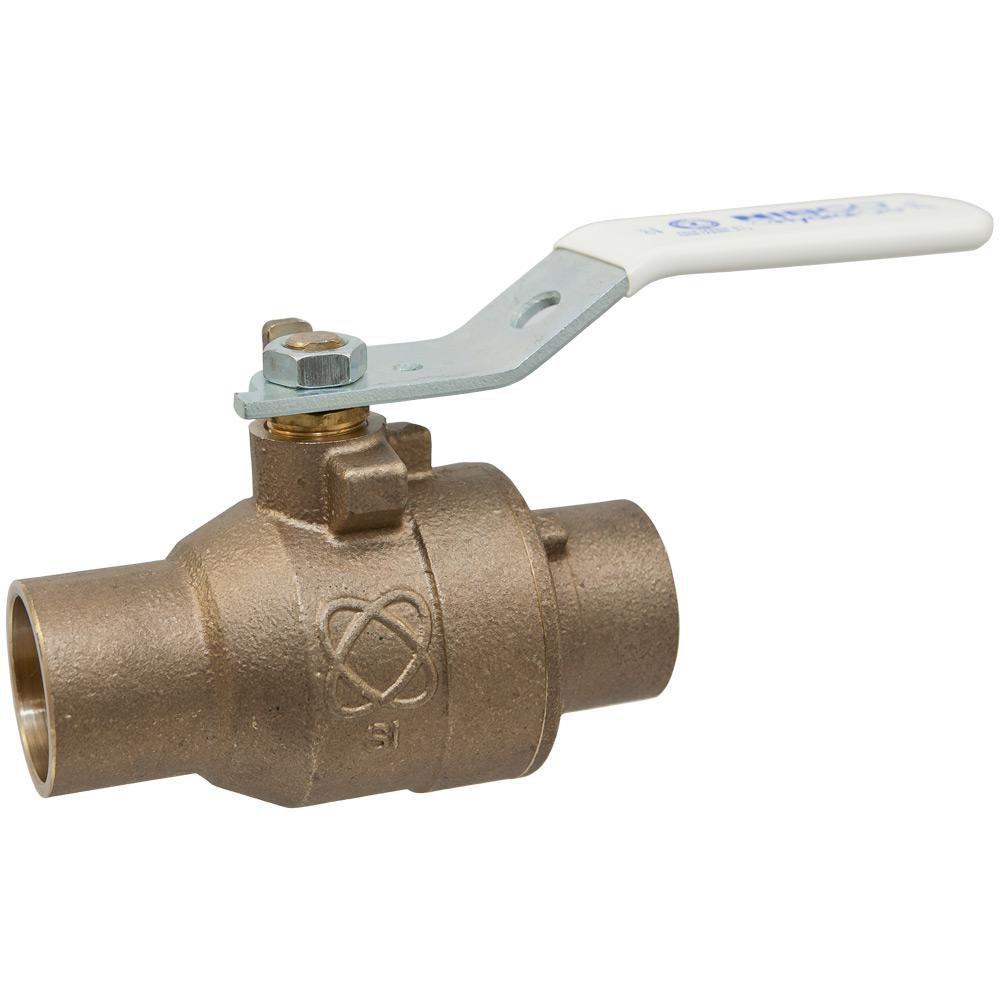

Nibco NJ83XHE S-585-66-LF Two-Piece Bronze Ball Valve 2-1/2 in.

Product Description

The NIBCO NJ83XHE bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features solder ends for easy installation. It is ideal for use in applications that deliver water for human consumption including residential and commercial construction.

• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Max temperature rating 300 0 F
• Full port

Product Highlights

The valve features a silicon bronze body, stainless steel ball and stem, and a standard lever handle. It conforms to MSS SP-110 and is dezincification resistant and lead-free.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NJ83XHE
• Country of Origin: US

Technical Specifications

• UPC Code: 039923369024
• Type: Ball Valve
• Connection Type: S -- Female Solder Cup
• Stem Material: Stainless Steel
• Ball Material: Stainless Steel
• Valve Size: 2 1/2
• Material: Lead Free Silicon Bronze
• Valve Operator: CS Standard Lever Handle
• Valve Operator Material: Metal - NIBCO - 316 Stainless Steel
• Description: S585-66-LF 2 1/2 SOLDER FULL PRT SS TRIM
• Turns/Operation: Quarter-Turn
• Manufacturer: NIBCO
• Part Number: NJ83XHE
• Model: S-585-66-LF
• Series: S-585-66-LF
• Type of Valve: Ball
• Nominal Pipe Size: 2-1/2"
• End Connection Type: S -- Female Solder Cup
• Ball Body Type: Two-Piece
• Ball Operator: CS Standard Lever Handle
• Ball Port Style: Full Port
• Trim Package: Stainless Steel Trim
• Seat Seal Material: RPTFE (Reinforced)
• Potable Water Code: LL Compliant NSF/ANSI 372
• Length: 11.64"
• Width: 6.54"
• Height: 4.42"
• End Connection 1: Female Solder
• End Connection 2: Female Solder
• End Connections: Female Solder x Female Solder
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Pressure Class: 600#
• Valve Body Style: 2 piece
• Valve Port Opening: Full Port
• Valve Seat Material: Reinforced PTFE
• Valve Stem: Blowout-proof
