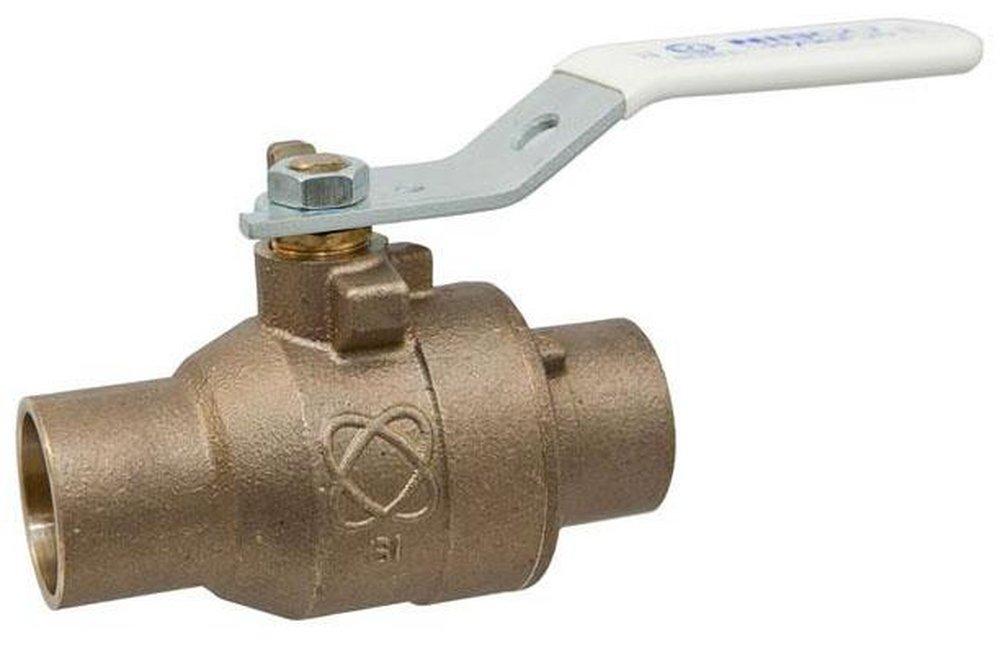

NIBCO NJ83XHD S-585-66-LF 2 in DZR Silicon Bronze Full Port Solder 600# Ball Valve

Product Description

The NIBCO NJ83XHD is a two-piece ball valve designed for reliable use in both residential and commercial applications. This valve features a solder end style, ideal for seamless installation. With a pressure rating of six hundred psi and a maximum temperature of three hundred degrees Fahrenheit, this valve ensures safe and effective operation in various plumbing systems.

• Made from silicon bronze for durability
• Includes stainless steel ball and stem
• Vented design for improved performance

Product Highlights

This valve is ideal for applications that deliver water for human consumption. It conforms to lead-free regulations and is dezincification resistant, ensuring longevity and compliance.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NJ83XHD

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: Stainless Steel
• Body Material: Silicon Bronze
• End Style: Solder
• Inlet to Outlet Length: 6.02 inches
• Nominal Size: 2 inches
• Orifice Size: 2 inches
• Port Type: Full
• Pressure Rating: 600 psi
• Series: S-585-66-LF
• Softgoods Material: PTFE
• Temperature Rating: 300 degrees Fahrenheit
• Top to Inlet Center: 3.56 inches
• Trim Material: Stainless Steel Stem
• Type: 2-Piece
