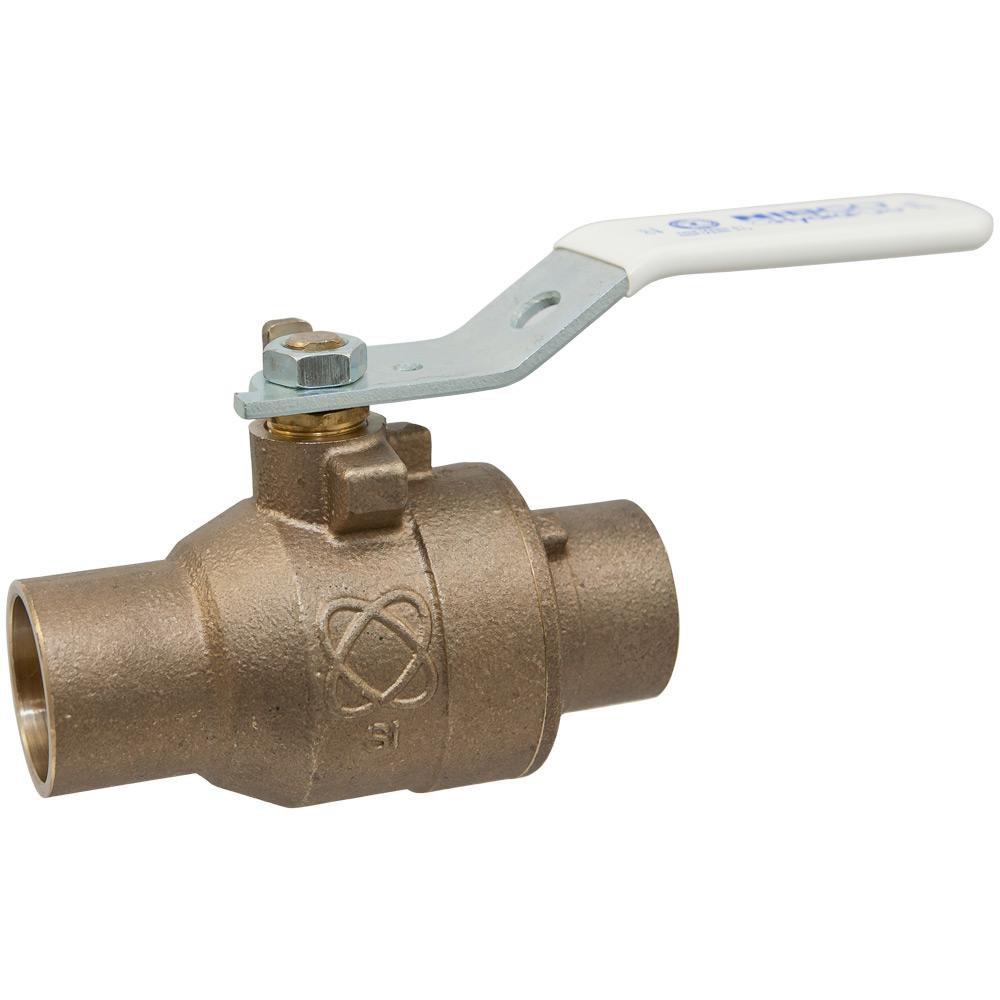

NIBCO NJ83XHC S-585-66-LF 1-1/2 in DZR Silicon Bronze Full Port Solder 600# Ball Valve

Product Description

The NIBCO NJ83XHC is a bronze ball valve designed for high performance in residential and commercial applications. It features a solder end style and is rated for pressures up to six hundred psi. The valve has a full port design for optimal flow and includes a lever handle actuator for easy operation. It is made from lead-free silicon bronze and comes with PTFE softgoods for durability and resistance to dezincification.

• Lead-free silicon bronze construction
• Rated for 600 psi pressure
• Full port design for optimal flow

Product Highlights

This two-piece ball valve is suitable for delivering water for human consumption, ensuring compliance with NSF standards.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Model: S-585-66-LF

Technical Specifications

• Nominal Size: 1-1/2 inches
• Orifice Size: 1-1/2 inches
• Body Material: Silicon Bronze
• Ball Material: Stainless Steel
• Pressure Rating: 600 psi
• Temperature Rating: 300 degrees Fahrenheit
• Inlet to Outlet Length: 4.97 inches
• Top to Inlet Center: 3.32 inches
• Softgoods Material: PTFE
• Type: 2-Piece
• Standards: ANSI/NSF 61-8
