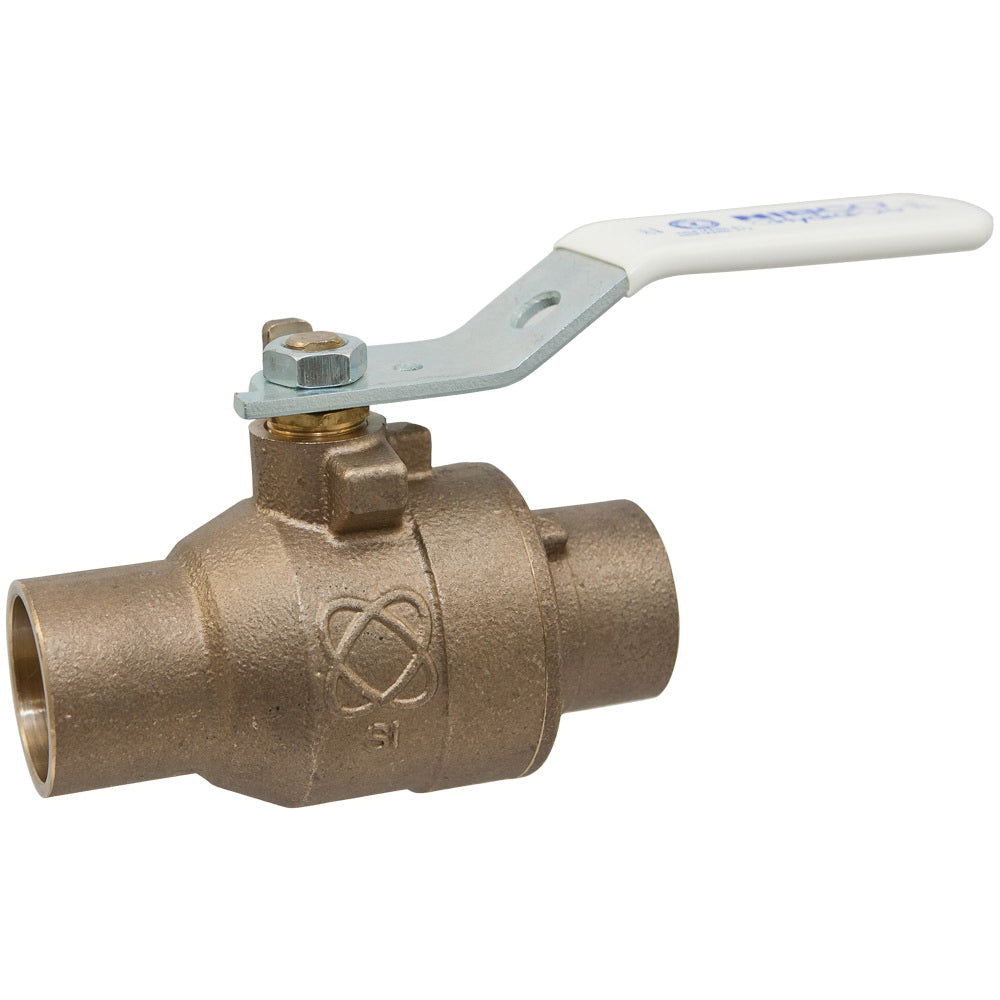

NIBCO NJ83HX8 S-585-66-LF Bronze Ball Valve 3/4 Inch Full Port Solder 600# Replacement NJ83HX8

Product Description

The NIBCO NJ83HX8 S-585-66-LF 3/4 inch Bronze Full Port Ball Valve is designed for reliable shutoff in residential and commercial water delivery systems. Its construction from silicon performance bronze and compliance with key standards make it a prime choice for safe water applications.

• Lead-free, dezincification-resistant silicon bronze body ensures durability and safe usage.
• Features a stainless steel ball and stem, with PTFE seat rings for efficient operation.
• Designed with solder ends for ease of installation, supporting pressures up to 600 psi.

Product Highlights

This valve is ideal for applications in both residential and commercial settings, providing a secure, bubble-tight seal. Enhanced by a vented ball design and blowout-proof stem, it ensures long-term reliability.

Product Information

Standard Information

• Material: Silicon Bronze, Stainless Steel, PTFE
• Connection Type: Solder

Technical Specifications

• Pressure Rating: 600 psi CWP Non-Shock
• Temperature Rating: 300 degrees Fahrenheit
• Size: 3/4 inch
• Port Type: Full
• Compliance: MSS SP-110, NSF/ANSI-61, NSF/ANSI-372, cUPC
