Product Description

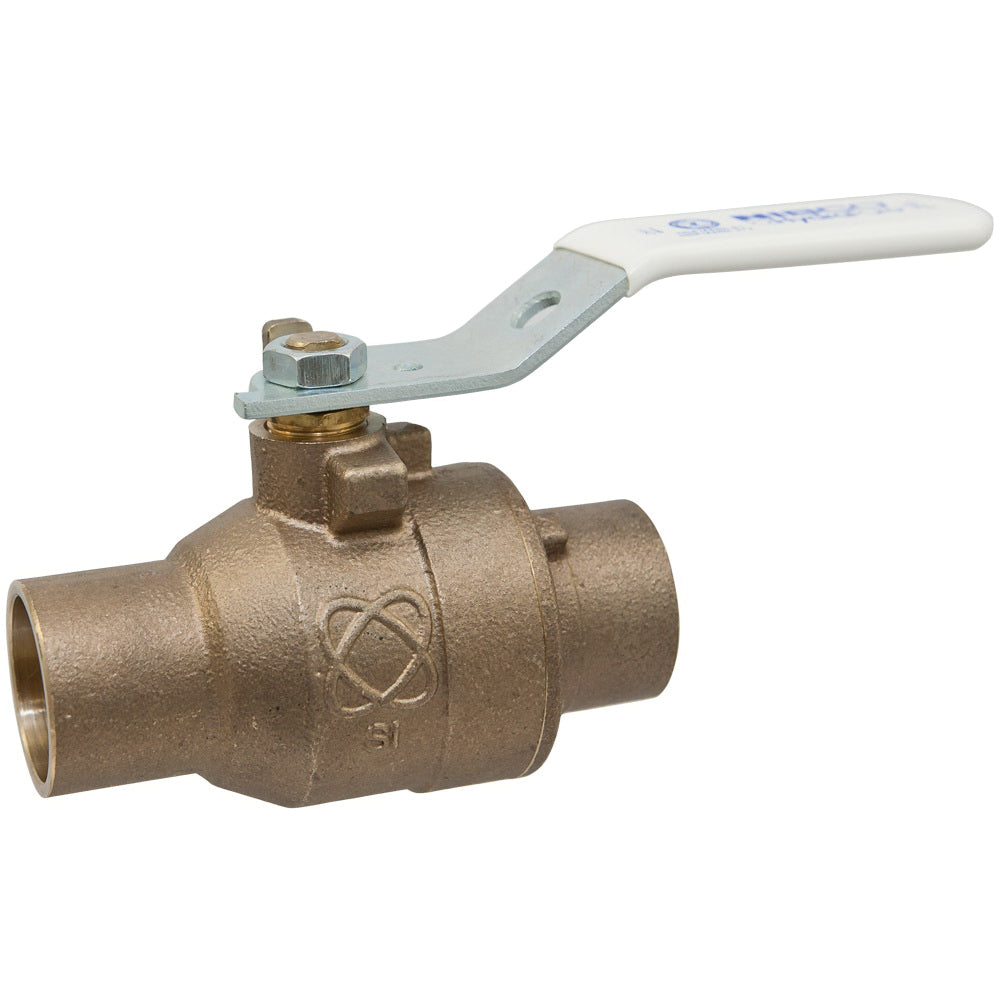

The NIBCO NJ83HX6 S-585-66-LF Full Port Ball Valve is designed for high-performance shut-off applications in water delivery systems. Ideal for both residential and commercial constructions, this valve is crafted from high-quality silicon performance bronze, ensuring long-lasting durability and resistance to dezincification.
- Lead-free, making it suitable for potable water systems.
- Equipped with reinforced PTFE seat rings and a stainless steel ball for reliable sealing.
- Easy to install with solder end connections.
Product Highlights
This robust ball valve operates with a 600 psi non-shock cold working pressure and features a blowout-proof stem for enhanced safety. Its full port design facilitates maximum flow and efficient operation.
Product Information
Standard Information
-
Pressure Rating: 600 psi
-
Temperature Limit: Up to 300 degrees Fahrenheit
Technical Specifications
-
Body Material: Silicon Bronze
-
Stem and Ball Material: Stainless Steel
-
Seal Material: Reinforced PTFE
-
Connection Type: Solder
-
Port Type: Full
-
Safety Features: Blowout-proof stem, Vented ball
-
Compliance: MSS SP-110, ASTM standards, NSF/ANSI-61 and 372
