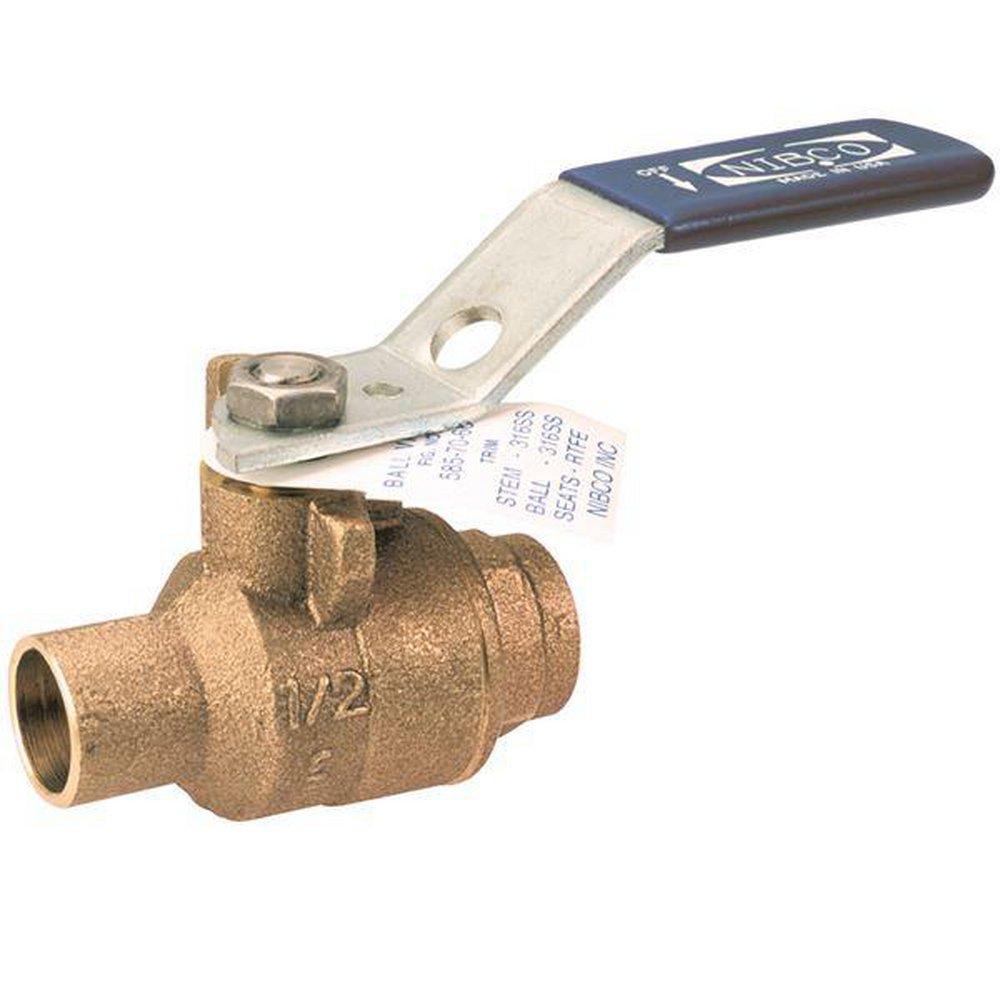

NIBCO NJ83H08 S-585-70-66 3/4 in DZR Bronze Full Port Solder 600# Ball Valve

Product Description

The NIBCO NJ83H08 is a S-585-70-66 3/4 inch DZR bronze full port solder ball valve designed for durability and efficiency in high-pressure applications. This valve operates at a pressure rating of six hundred psi and is suitable for various media including air, gas, and water. It features a stainless steel ball and stem, offering robustness against wear and corrosion.

• Dezincification resistant construction
• Full port design for maximum flow
• Standard lever handle for easy operation

Product Highlights

This ball valve provides bubble-tight shutoff and complies with MSS SP-110 standards, making it ideal for HVAC, hot and cold domestic water, low pressure steam, and natural gas applications.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: 2-Piece

Technical Specifications

• Nominal Size: 3/4 in
• Orifice Size: 3/4 in
• Pressure Rating: 600 psi
• Temperature Rating: 400 deg F
• Body Material: Bronze
• Ball Material: Stainless Steel
• Trim Material: Stainless Steel Stem
• Media: Air/Gas/Water
• End Style: Solder
• Inlet to Outlet Length: 3-1/4 in
• Top to Inlet Center: 2-1/4 in
