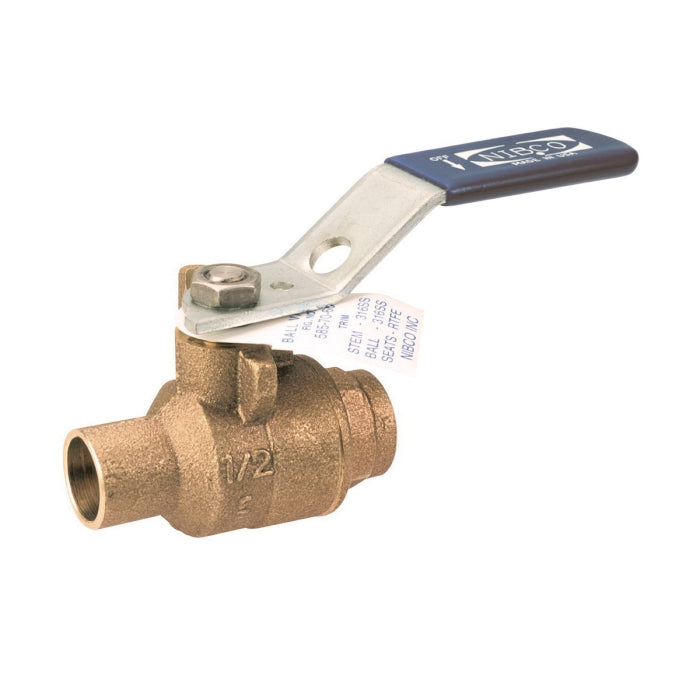

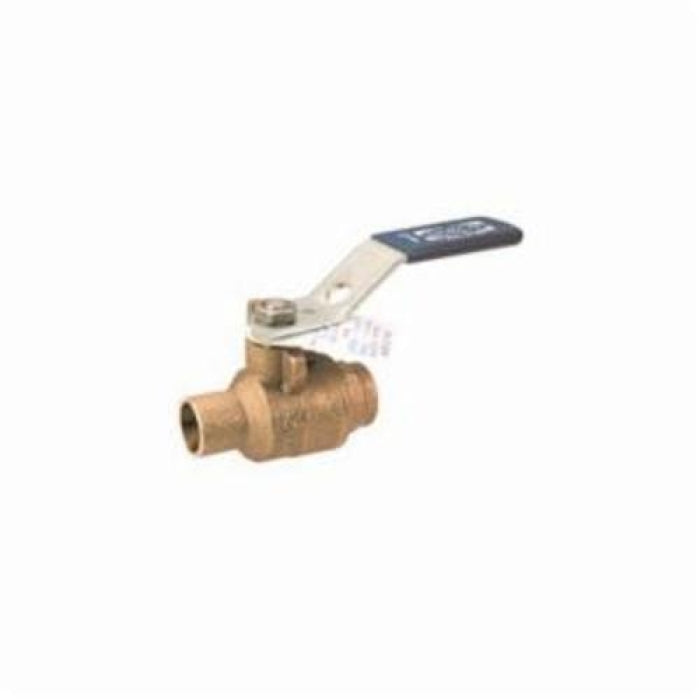

NIBCO NJ83H05 S-585-70-66 2-Piece Ball Valve 3/8 in Nominal Solder

Product Description

The NIBCO NJ83H05 is a 2-piece ball valve designed for reliable flow control. This valve has a nominal size of three-eighths of an inch and features solder end connections. It operates at a maximum pressure of six hundred psi and can withstand temperatures up to four hundred degrees Fahrenheit.

• Full port design allows for maximum flow
• Standard lever actuator for easy operation
• Constructed with stainless steel and bronze for durability

Product Highlights

This valve is suitable for various applications including HVAC systems, hot and cold domestic water, low pressure steam, and gas services. It is designed to provide bubble-tight shut-off and high chemical resistance, making it ideal for commercial and light industrial processes.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: 2-Piece

Technical Specifications

• Nominal Size: 3/8 in
• Orifice Size: 0.38 in
• Pressure Rating: 600 psi
• Temperature Rating: 400 deg F
• Body Material: Bronze
• Ball Material: Stainless Steel
• Softgoods Material: PTFE
• End Style: Solder
• Inlet to Outlet Length: 1.84 in
• Top to Inlet Center: 1-3/4 in
