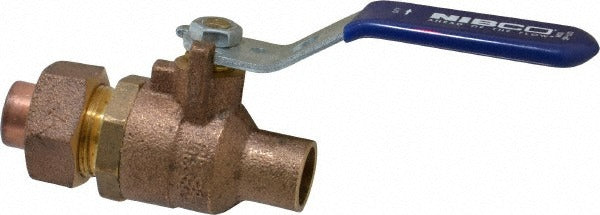

Nibco NJ83F06 1/2 in Full Port Union Ball Valve Soldered

Product Description

The NIBCO NJ83F06 is a single union ends manual ball valve designed for 1/2-inch pipe in hydronic, plumbing, and mechanical piping systems. It features a full-port bore to minimize flow restriction and a lever handle for quick quarter-turn shutoff. The body and trim are bronze construction, and the seat is reinforced PTFE (polytetrafluoroethylene), which provides chemical resistance and long service life under typical system pressures and temperatures. The single union design allows the valve to be removed from the line without cutting pipe, making it a practical choice wherever serviceability is a priority. Licensed plumbers and HVAC technicians are the typical installers of this valve.

This valve is suited for residential and light commercial applications including hydronic heating systems, domestic water supply lines, chilled water circuits, and general plumbing shutoff service. The soldered end connections make it a direct fit for copper tubing installations. The two-piece construction and union end simplify inline maintenance and future valve replacement without major piping disruption.

Key Features

• Full-port ball design minimizes pressure drop across the valve
• Single union end allows in-line removal without cutting pipe
• Bronze body and trim rated for durability in wet plumbing environments
• Reinforced PTFE seat provides chemical resistance and reliable sealing
• Quarter-turn lever handle gives immediate visual open/closed indication
• Soldered x soldered end connections for standard copper tube installation

Compatibility

Designed as an OEM-style replacement or new-installation valve for 1/2-inch copper tube systems using soldered end connections in residential and light commercial plumbing and hydronic applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable local codes and the IPC or IFGC as required. Shut off and depressurize the system and drain all fluid before soldering to avoid damaging the PTFE seat from excessive heat. Use a heat shield or remove the ball and seat assembly prior to sweating the valve into the line. Verify flow direction and confirm all joints are fully cooled and leak-tested before returning the system to service.
