Product Description

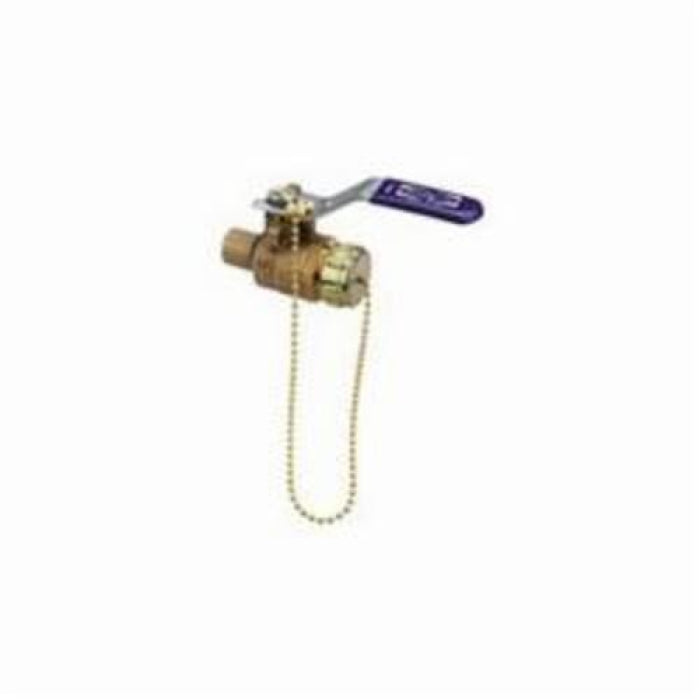

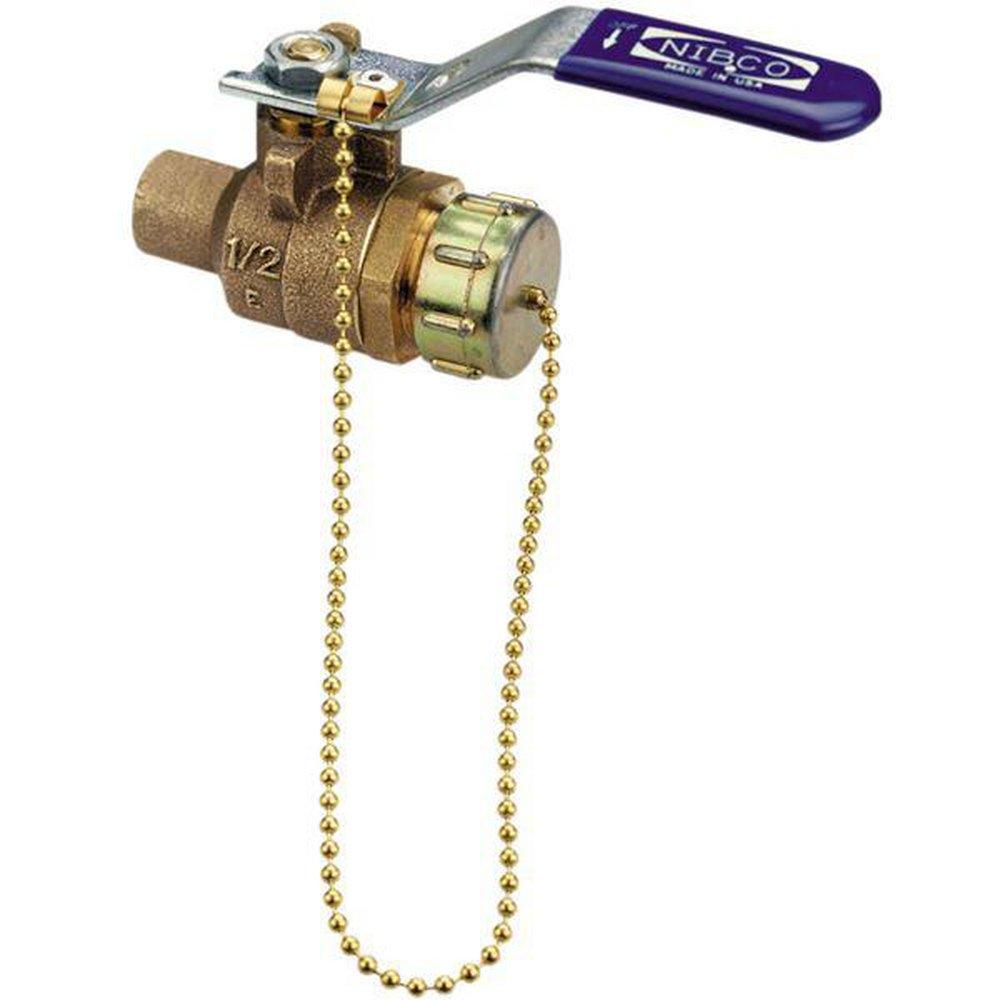

The NIBCO NJ83806 is a full port ball valve designed for various plumbing and industrial applications. This valve features a solder and hose connection with a cap and chain attached. It is ideal for commercial and light industrial environments requiring garden hose connections for drainage purposes.
- Quarter-turn operation for easy open and close.
- Rated for a maximum pressure of 600 psi.
- Constructed from dezincification resistant bronze.
Product Highlights
The NIBCO ball valve offers reliable performance with a reinforced PTFE seat ring and hard chrome plated ball. It meets MSS SP-110 standards and is suitable for media including water. The valve's design allows for bubble-tight shut-off.
Product Information
Standard Information
-
Brand: NIBCO
-
MPN: NJ83806
Technical Specifications
-
Actuator Type: Standard Lever
-
Body Material: Bronze
-
Ball Material: Chrome Plated Brass
-
End Style: Solder x Hose
-
Pressure Rating: 600 psi
-
Temperature Rating: 400 deg F
-
Nominal Size: 1/2 x 3/4 in
-
Orifice Size: 1/2 in
