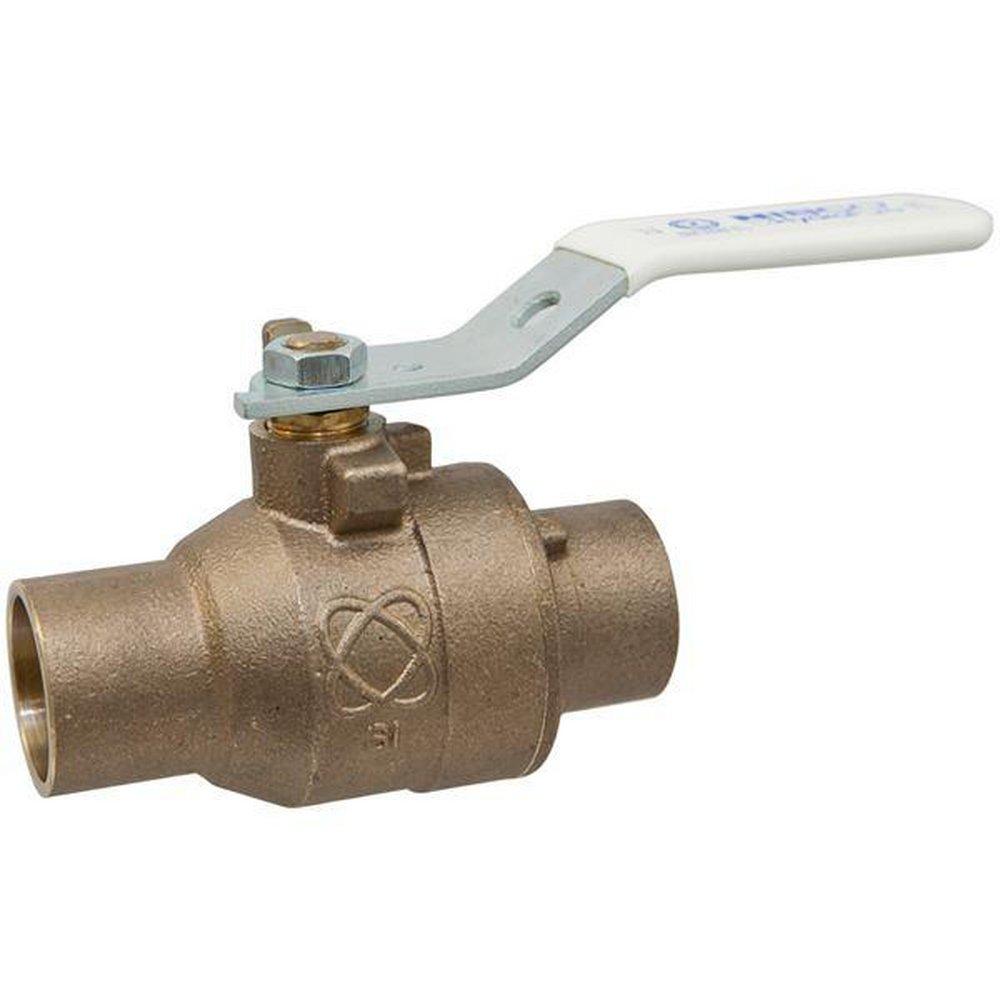

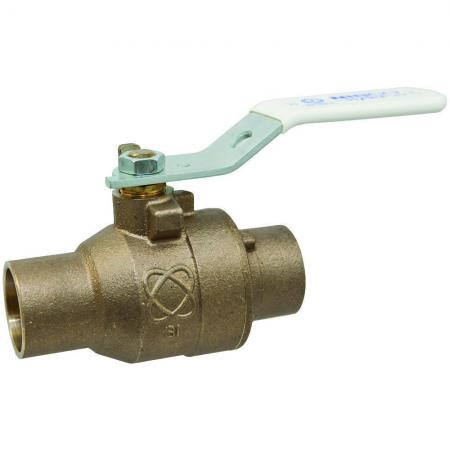

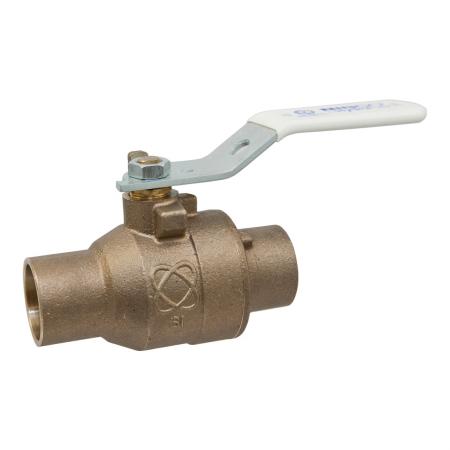

NIBCO NJ831XE S-585-80-LF 2-1/2 in Solder Full Port Ball Valve

Product Description

The NIBCO S-585-80-LF 2-1/2 inch ball valve with MPN NJ831XE offers reliable performance for various plumbing applications. This valve features a full port design for enhanced flow and is constructed from silicon bronze, ensuring durability. It is designed for easy installation with solder ends and operates with a quarter-turn lever handle for convenient activation.

• Full port design allows for maximum flow capacity.
• Rated for a pressure of 600 psi and a temperature of up to 300 degrees Fahrenheit.
• Lead-free construction meets safety standards for drinking water applications.

Product Highlights

This valve is ideal for use in water delivery systems for both residential and commercial construction, providing a dependable option for controlling water flow.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NJ831XE

Technical Specifications

• Manufacturer: NIBCO INC
• Body Material: Silicon Bronze
• Ball Material: Silicon Bronze
• End Style: Solder
• Nominal Size: 2-1/2 inches
• Orifice Size: 2-1/2 inches
• Inlet to Outlet Length: 7.21 inches
• Top to Inlet Center: 4.4 inches
• Temperature Rating: 300 degrees Fahrenheit
• Pressure Rating: 600 psi
• Valve Type: 2-Piece
• Trim Material: Silicon Bronze Stem
• Media: Water
• Series: S-585-80-LF
• Softgoods Material: PTFE
