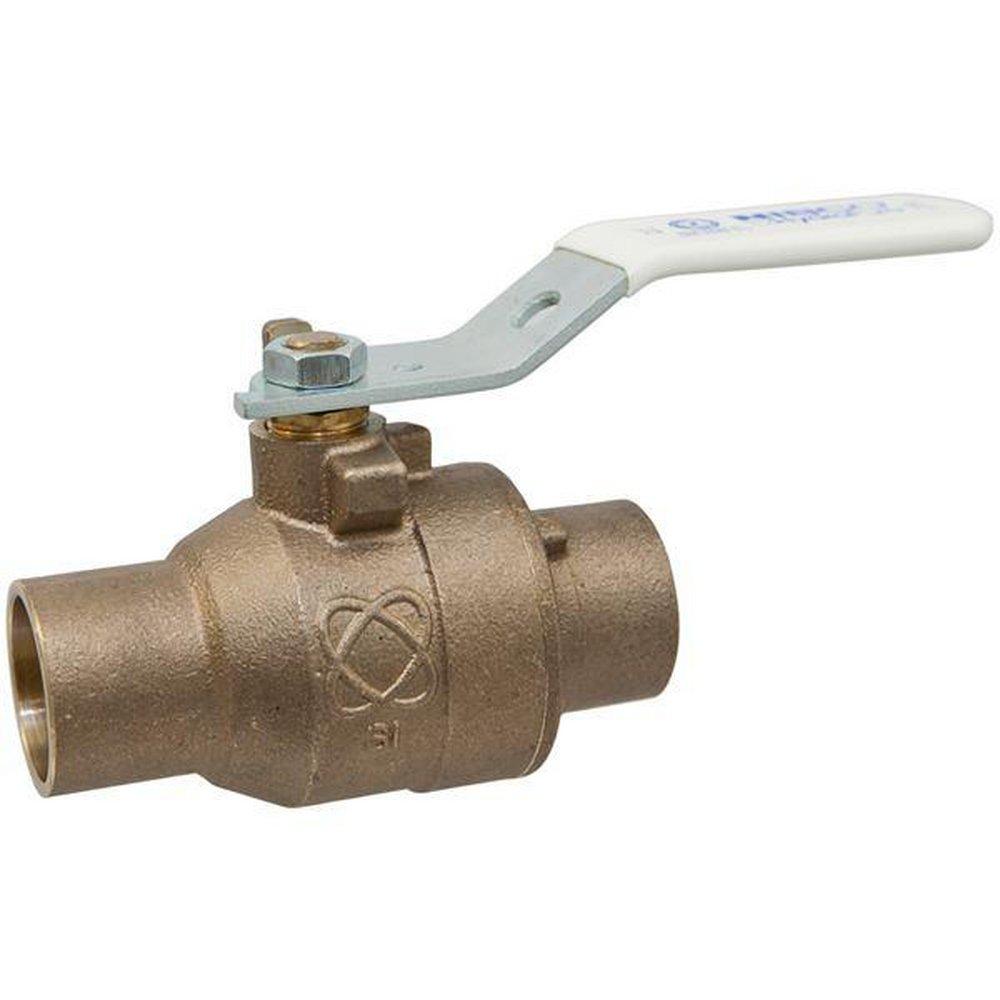

NIBCO NJ831XC S-585-80-LF 1-1/2 in. Silicon Bronze Full Port Solder 600# Ball Valve

Product Description

The NIBCO NJ831XC is a silicon bronze full port solder ball valve with a pressure rating of six hundred psi. It is suitable for water delivery in residential and commercial applications. This valve features a lever handle for easy operation and has a dezincification resistant design. The NIBCO NJ831XC meets the standards for lead-free plumbing under NSF/ANSI/CAN-61.

• Pressure rating: 600 psi (CWP non-shock)
• Full port design for maximum flow
• Domestic manufacturing with a focus on quality

Product Highlights

The NIBCO NJ831XC ball valve is ideal for applications that require reliable service and minimal maintenance. With a temperature rating of three hundred degrees Fahrenheit, it can handle various media efficiently.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NJ831XC

Technical Specifications

• Type: 2-Piece, Full-Port
• Media: Water
• Ball Material: DZR Brass
• Body Material: Silicon Bronze
• End Style: Solder
• Nominal Size: 1-1/2 in
• Orifice Size: 1-1/2 in
• Pressure Rating: 600 psi
• Temperature Rating: 300 deg F
• Inlet to Outlet Length: 4.97 in
• Top to Inlet Center: 3.32 in
