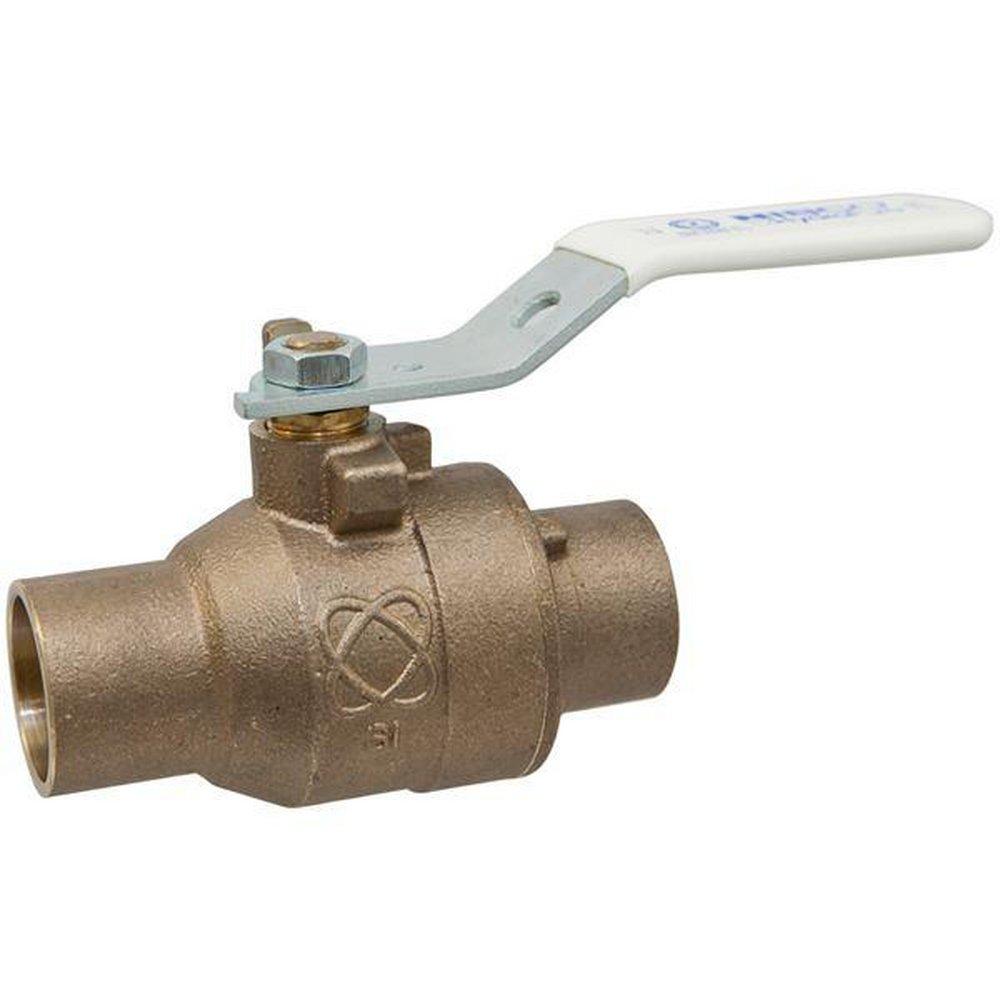

NIBCO NJ830XF S-580-80-LF 3 in DZR Silicon Bronze Conventional Port Solder 600# Ball Valve

Product Description

The NIBCO NJ830XF is a two-piece ball valve. It is made of DZR silicon bronze and has a conventional port. This valve is designed for easy operation with a quarter-turn mechanism.

• Max pressure rating is six hundred psi.
• Compatible with water as a media.
• Simple solder ends for installation.

Product Highlights

This valve is ideal for both residential and commercial applications.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NJ830XF

Technical Specifications

• Nominal Size: three inches
• Orifice Size: two and a half inches
• Pressure Rating: six hundred psi
• Temperature Rating: three hundred degrees Fahrenheit
• Body Material: silicon bronze
• Ball Material: silicon bronze
• Softgoods Material: PTFE
• Actuator Type: standard lever handle
• Inlet to Outlet Length: seven point six seven inches
• Top to Inlet Center: four point three three inches
• End Style: solder
• Port Type: conventional
• Series: S-580-80-LF
