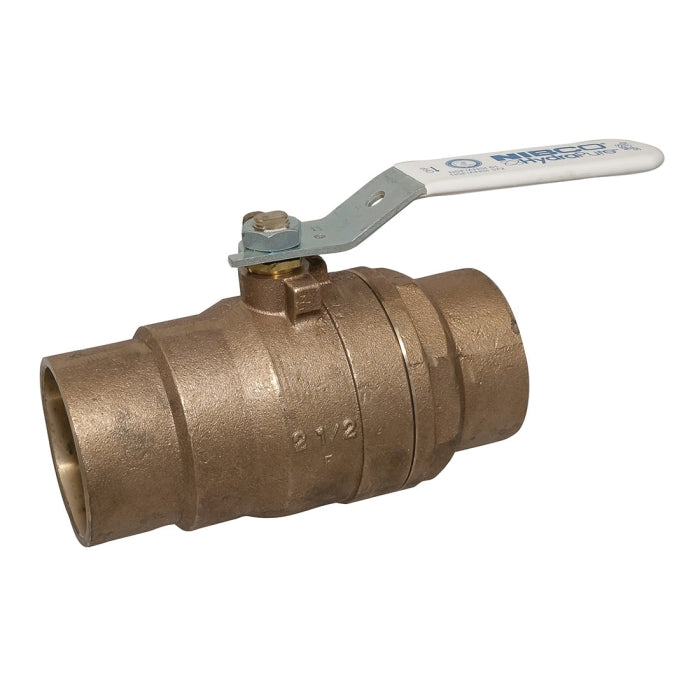

NIBCO NJ830XE S580-80-LF 2-Piece Ball Valve 2-1/2 in Solder

Product Description

The NIBCO NJ830XE is a two-piece ball valve from the S580-80-LF series. It features solder ends and is suitable for water media. This valve operates with a locking lever handle and is rated for up to six hundred psi. The valve is made of silicon bronze with PTFE softgoods and is designed for commercial and residential use.

• Two-piece design for easy installation
• Operates with a quarter-turn for on/off control
• Lead-free construction for safe water applications

Product Highlights

This valve provides a reliable solution for various plumbing applications, supporting an extensive pressure rating and temperature capacity.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: 2-Piece

Technical Specifications

• Nominal Size: 2-1/2 in
• Orifice Size: 2 in
• End Style: Solder
• Media: Water
• Pressure Rating: 600 psi
• Temperature Rating: 300 deg F
• Inlet to Outlet Length: 6.34 in
• Top to Inlet Center: 3.56 in
• Body Material: Silicon Bronze
• Trim Material: Silicon Bronze Stem
• Softgoods Material: PTFE
• Port Type: Conventional
• Series: S-580-80-LF
