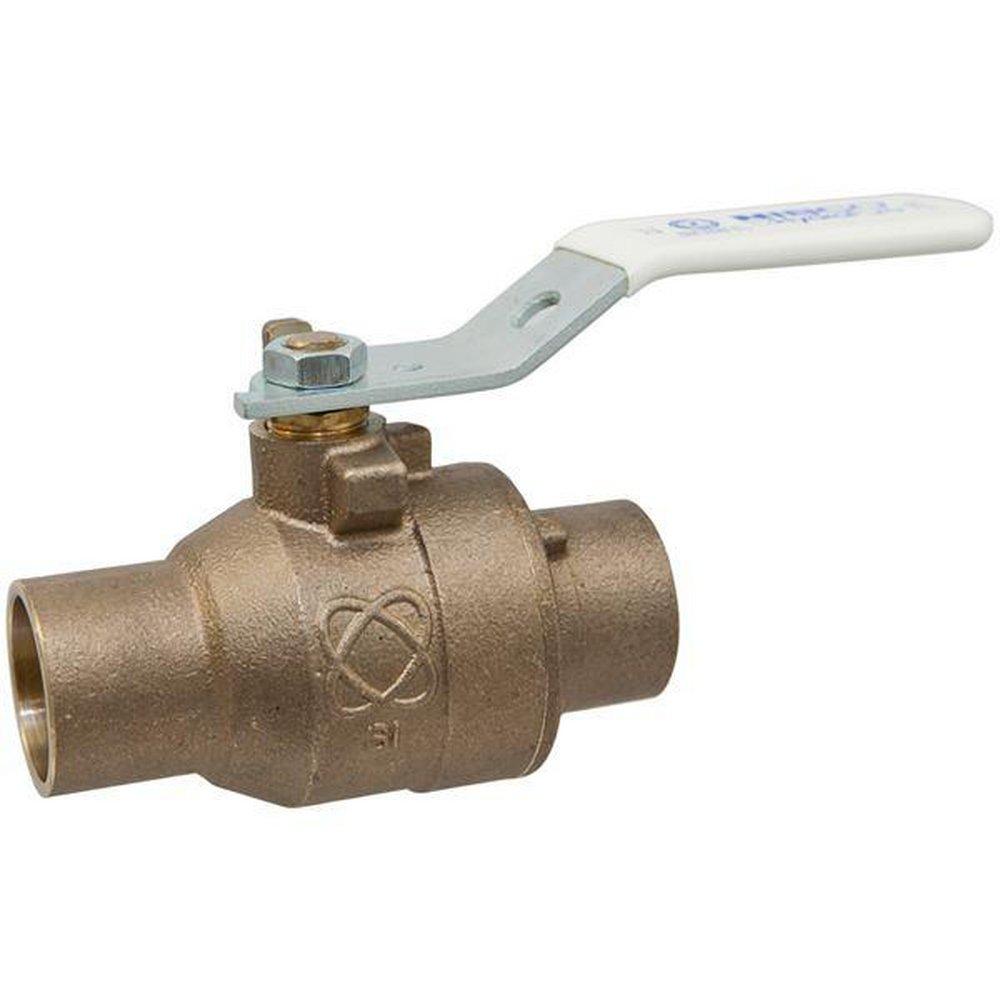

Nibco NJ830X8 S-585-80-LF 3/4 in Silicon Bronze Full Port Solder 600 psi Ball Valve

SKU / MPN:
NJ830X8
SKU / MPN: NJ830X8

$46.85

In Stock - Ships Same Day if Ordered by 12pm

Secure
Ordering

Easy
Returns

100% Fit
Guarantee

Expert
Advice

Fast
Shipping

HAVE A QUESTION? Our friendly team is ready to help!

Product Information

Product Description

The Nibco NJ830X8 S-585-80-LF Ball Valve is a 3/4 inch silicon bronze, full port, solder ball valve rated for 600 psi. Designed for both residential and commercial applications, it is ideal for water systems aimed at human consumption.

  • Quick shutoff with 1/4 turn valve
  • Lead-free silicon performance bronze
  • Blowout-proof stem

Product Highlights

This ball valve features a full port for maximum flow and minimal pressure drop. It is dezincification resistant and includes PTFE seat rings for a secure fit. The lever handle allows for easy operation.

Product Information

Standard Information

  • Brand: Nibco
  • Model: S-585-80-LF
  • Connection Type: Solder

Technical Specifications

  • Ball Material: Silicon Bronze
  • Body Material: Silicon Bronze
  • Pressure Rating: 600 psi
  • Temperature Rating: 300 degrees Fahrenheit
  • Nominal Size: 3/4 inch
  • Port Type: Full
  • Connection Size: 3/4 inch
  • Inlet to Outlet Length: 3.16 inches
  • Top to Inlet Center: 2.28 inches
  • Trim Material: Silicon Bronze Stem
  • Softgoods Material: PTFE
