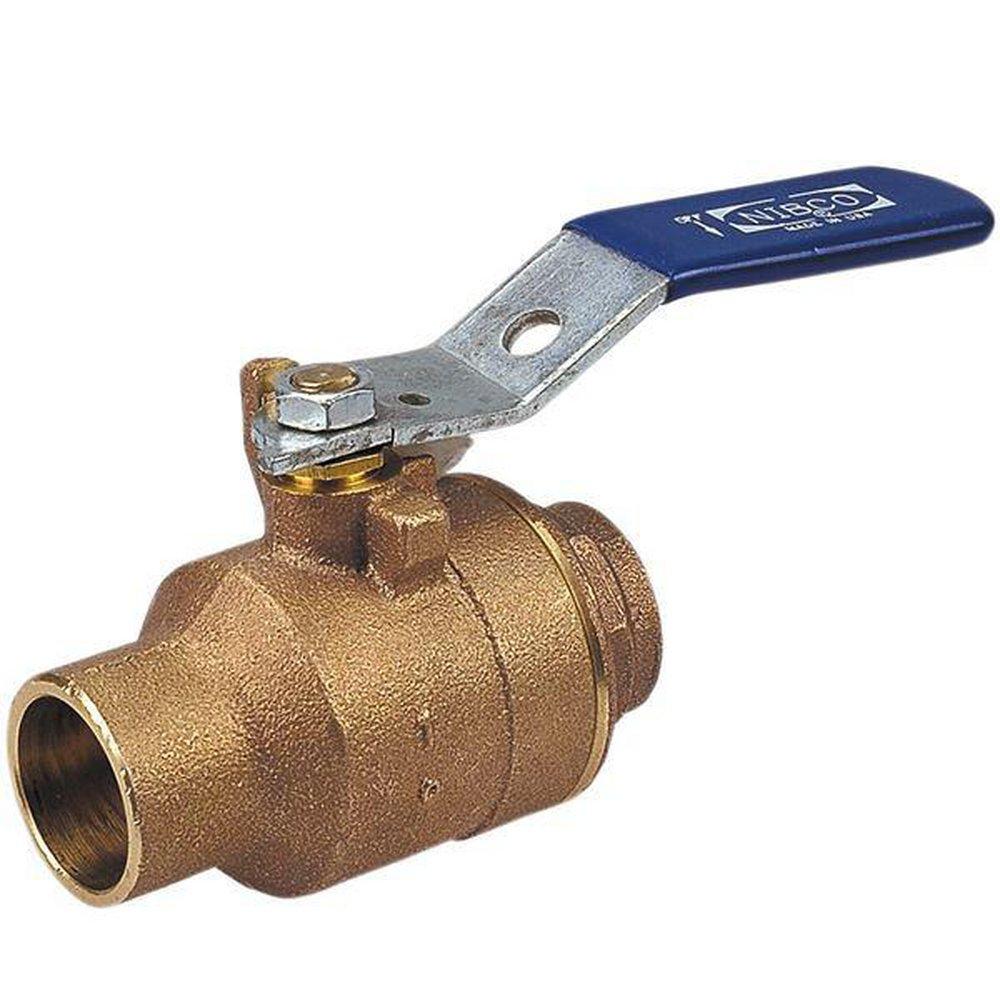

NIBCO NJ8300F S-580-70 3 in DZR Bronze Conventional Port Solder 600# Ball Valve NS58070M

Product Description

The NIBCO NJ8300F is a 3-inch DZR bronze conventional port solder ball valve designed for a variety of applications. This valve has a pressure rating of 600 psi. It is suitable for both hot and cold water, air, and gas media. The maximum temperature rating is four hundred degrees Fahrenheit. The valve features solder end connections and a blowout-proof stem for added durability.

• Valve pressure rating of 600 psi
• Dezincification resistant
• Chrome plated brass ball with silicon bronze trim

Product Highlights

This ball valve is perfect for plumbing, heating, and industrial applications. Its two-piece design and sturdy materials ensure long-lasting performance.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NJ8300F

Technical Specifications

• Nominal Size: 3 in
• Orifice Size: 2-1/2 in
• Body Material: Cast Red Bronze
• Ball Material: Polished Chrome Brass
• Actuator Type: Locking Lever Handle
• Inlet to Outlet Length: 8.78 in
• Top to Inlet Center: 4.41 in
• Softgoods Material: PTFE
• Trim Material: Silicon Bronze Stem
• Temperature Rating: 400 deg F
• End Style: Solder
• Port Type: Conventional
• Pressure Rating: 600 psi
• Series: S-580-70
• Domestic/Import: Domestic
