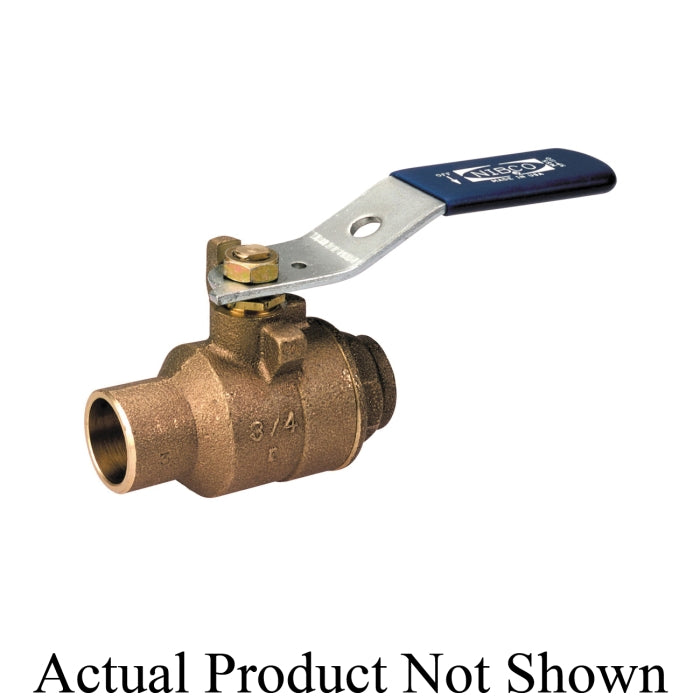

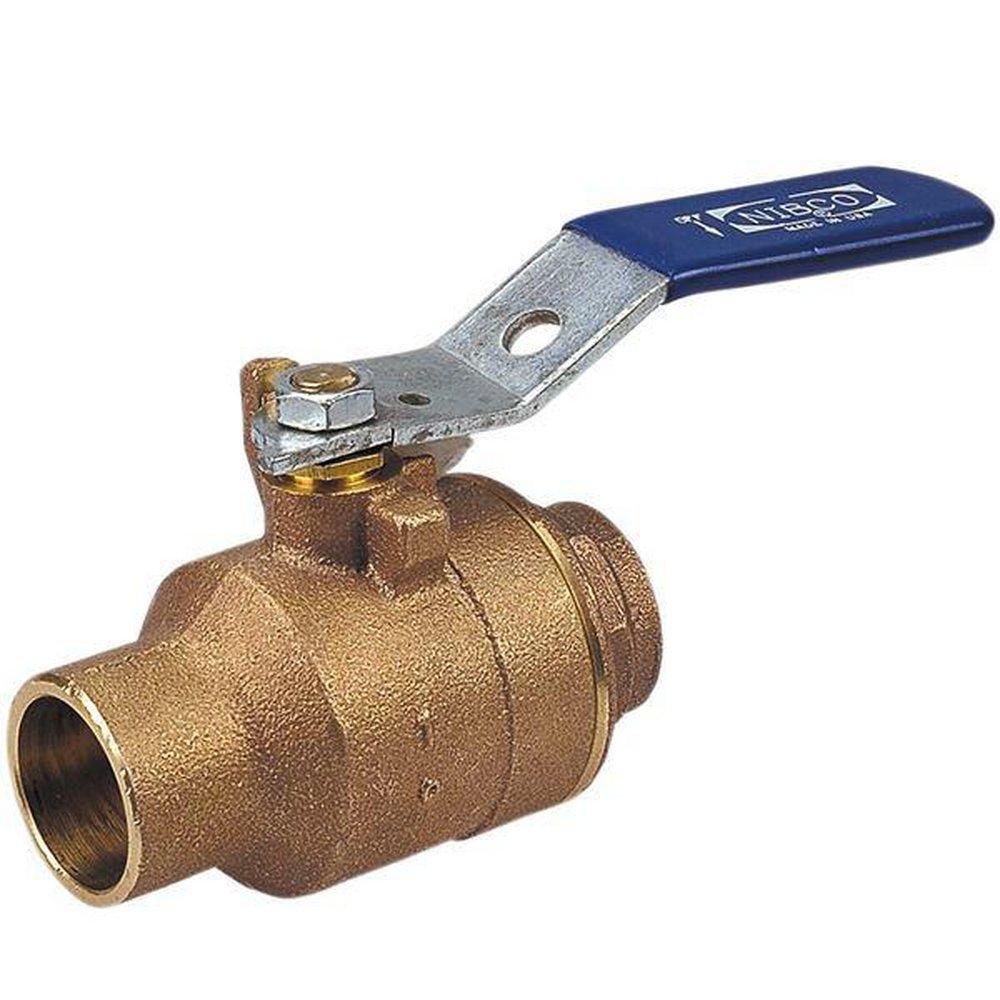

NIBCO NJ8300C S-580-70 1-1/2 in DZR Bronze Conventional Port Solder 600# Ball Valve

Product Description

The NIBCO NJ8300C is a two-piece ball valve designed for various applications. This valve features a 1-1/2 inch nominal size with a solder end style. It operates at a pressure rating of 600 psi and is suitable for media such as air, gas, and water. The body is made of cast red bronze and incorporates a polished chrome brass ball for reliable operation.

• 1-1/2 inch nominal size
• Pressure rated to 600 psi
• Suitable for HVAC and light industrial applications

Product Highlights

This NIBCO ball valve provides ease of operation with a quarter-turn mechanism. Ideal for commercial and light industrial processes, it is appropriate for hot and cold domestic water, low-pressure steam, and compressed air systems.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• MPN: NJ8300C

Technical Specifications

• Actuator Type: Locking Lever Handle
• Ball Material: Polished Chrome Brass
• Body Material: Cast Red Bronze
• End Style: Solder
• Inlet to Outlet Length: 4.44 inches
• Media: Air/Gas/Water
• Nominal Size: 1-1/2 inches
• Orifice Size: 1-1/4 inches
• Port Type: Conventional
• Pressure Rating: 600 psi
• Series: S-580-70
• Softgoods Material: PTFE
• Temperature Rating: 400 degrees F
• Top to Inlet Center: 3 inches
• Trim Material: Silicon Bronze Stem
• Type: 2-Piece
