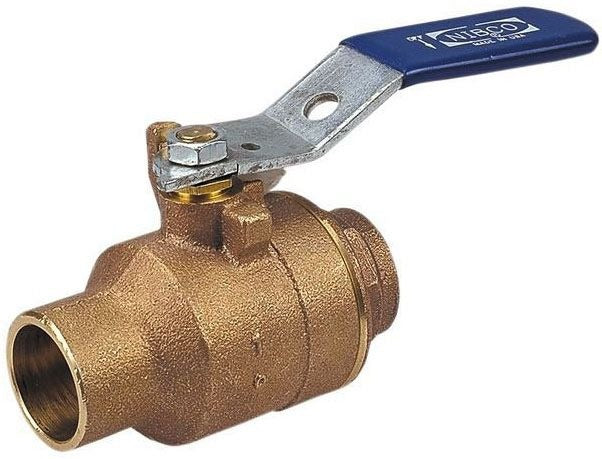

Nibco NJ83005 S-585-70 2-piece Ball Valve 3/8 in Solder

Product Description

The NIBCO NJ83005 is a 2-piece, full-port ball valve from the S-585-70 series, designed for shut-off service in commercial and light industrial piping systems. It features a bronze body, a polished chrome brass ball, and silicon bronze stem trim, with PTFE softgoods for reliable sealing. The valve carries a pressure rating of 600 psi and a temperature rating of 400 degrees F, making it suitable for a broad range of fluid and gas applications. Connection is made via solder end style on a 3/8 inch nominal size. A standard lever handle provides fast quarter-turn operation. Licensed plumbers and pipefitters are the primary installers for this type of valve.

The NJ83005 is rated for commercial and light industrial process applications including HVAC systems, hot and cold domestic water distribution, low-pressure steam, compressed air, LP gas, and natural gas. Its full-port design minimizes pressure drop across the valve, which is especially useful in systems where flow efficiency matters. The 0.38 inch orifice matches the nominal pipe size for unrestricted flow. Note: per California Section 116875, this valve is not approved for use in potable drinking water service.

Key Features

• Full-port design with 0.38 inch orifice for minimal flow restriction
• 600 psi pressure rating suitable for demanding commercial service
• 400 degrees F temperature rating covers steam and high-temp fluid lines
• Bronze body with silicon bronze stem trim for corrosion resistance
• PTFE seats and softgoods for long-term sealing integrity
• Standard lever handle actuator for quick quarter-turn shut-off
• Domestically manufactured

Compatibility

Designed for use in commercial and light industrial piping applications including HVAC, hot and cold domestic water, low-pressure steam, compressed air, LP gas, and natural gas systems. Not for use in potable drinking water service per California Section 116875.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter. Shut off system pressure and drain the line before removing or installing any valve. Solder end connections require standard copper tubing prep, flux, and lead-free solder in accordance with applicable plumbing codes such as the IPC. Do not apply torch heat directly to the valve body after assembly, as excessive heat can damage the PTFE seats and seals.
