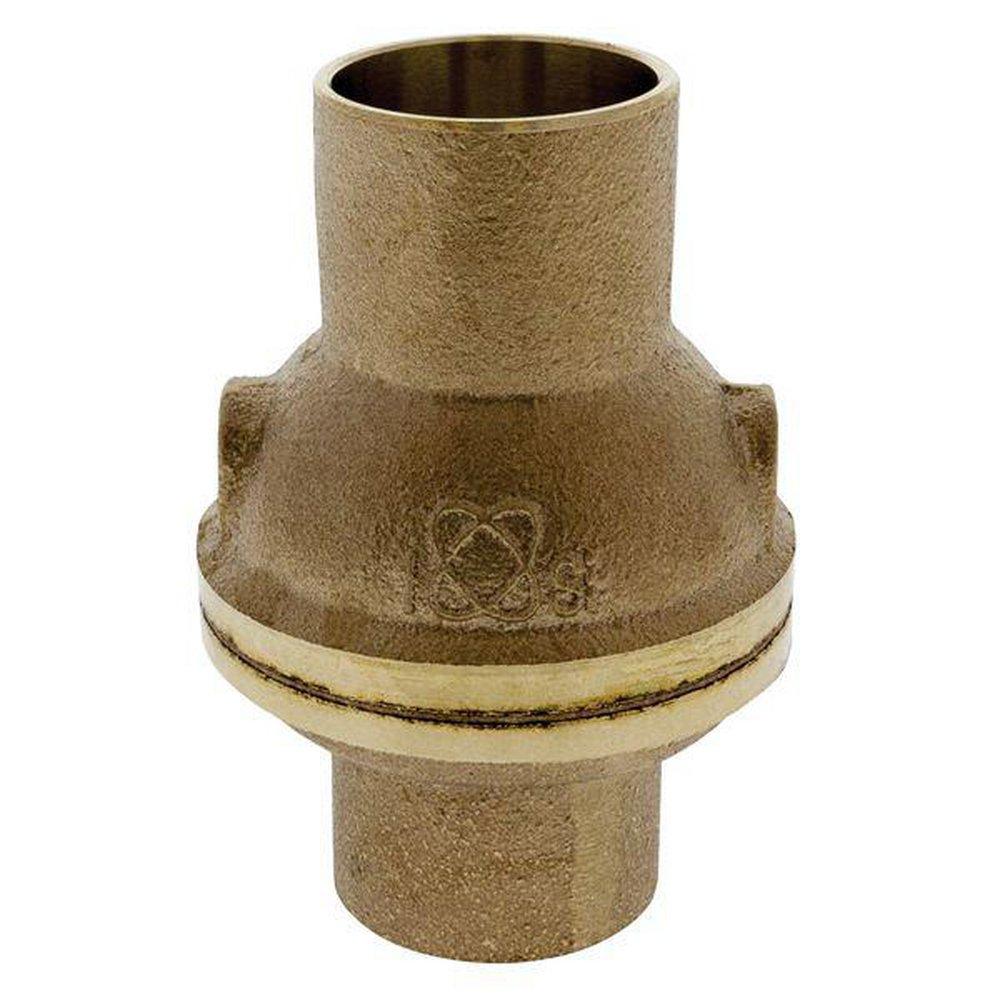

NIBCO NJ7Q2XB Ring Check In-line Lift Check Valve 1-1/4 in

Product Description

The NIBCO Ring Check valve, MPN NJ7Q2XB, features solder end connections for easy installation. This in-line lift check valve can be used in either horizontal or vertical positions with the flow moving upwards. For detailed installation and engineering data, refer to NIBCO technical resources. The NIBCO valves are a preferred choice for reliability and efficiency in both commercial and residential applications.

• Pressure rating of 250 psi for safe operation
• Constructed from durable silicon bronze
• Low lead compliant design

Product Highlights

The valve includes a spring actuator and is suitable for water media, featuring a nominal size of one and one-fourth inches. The body material is silicon bronze with PTFE trim and an effective inlet to outlet length of three point five one inches.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Model Number: NJ7Q2XB

Technical Specifications

• Actuator Type: Spring
• Body Material: Silicon Bronze
• Domestic/Import: Domestic
• End Style: Female Solder Cup
• Inlet to Outlet Length: 3.51 inches
• Low Lead Compliance: Yes
• Media: Water
• Nominal Size: 1-1/4 inches
• Pressure Rating: 250 psi CWP
• Series: S-480-Y-LF
• Softgoods Material: PTFE
• Temperature Rating: 300 degrees F
• Trim Material: PTFE
