Nibco NJ7Q0XC Hydrapure S-480-Y-LF Bronze Ring Check Valve 1-1/2 in Replacement MPN

Product Description

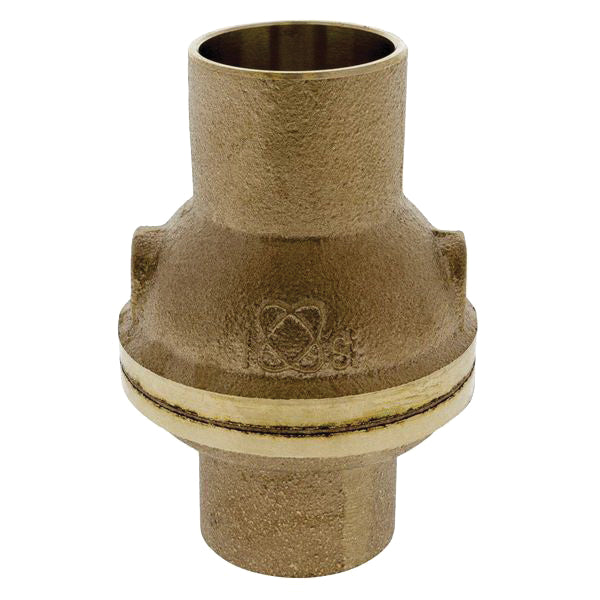

The Nibco NJ7Q0XC is a Hydrapure S-480-Y-LF bronze ring check valve designed for reliable performance. This valve has solder end connections that facilitate easy installation in various positions, both horizontal and vertical. It is lead-free and made of a silicon performance bronze body, ensuring compliance with safety standards.

• Lead-free construction
• Compatible with horizontal and vertical installations
• Stainless steel spring and disc holder

Product Highlights

The Nibco check valve is ideal for preventing backflow in piping systems. It is backed by a five-year warranty for added assurance.

Product Information

Standard Information

• Brand: Nibco
• Sub Brand: Hydrapure

Technical Specifications

• Connection Size: 1-1/2 in
• Connection Type: Solder
• Dimension: 3.31 in L x 2-3/4 in W
• Disc Material: PTFE
• Item Name: Ring Check Valve
• Material: Bronze
• Model: S-480-Y-LF
• Operator Type: Stainless Steel Spring Actuated
• Pressure Rating: 100 psi at 300 deg F, 200 psi CWP Non-Shock
• Stem Material: Stainless Steel
• Material Specifications: ASTM B584, C87850, ASTM A582, S30300, ASTM A276, S43000
• Standards/Certifications: MSS SP-139, ANSI/NSF 61-8 and 372 certified
