NIBCO NJ7Q00B S480Y 1-1/4 In-Line Lift Check Valve Replacement MPN

Product Description

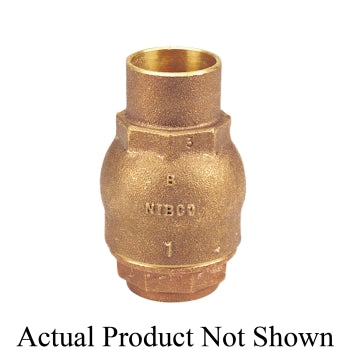

The NIBCO NJ7Q00B is a Ring Check In-Line Lift Check Valve. This valve is designed with solder connections. It can be installed in both horizontal and vertical orientations with upward flow. It is ideal for commercial, mechanical, and industrial applications.

• Nominal size of 1-1/4 inches.
• Pressure rating of 250 psi and temperature rating of 353 degrees Fahrenheit.
• Made from bronze with stainless steel and PTFE trim.

Product Highlights

This NIBCO check valve is backed by a 5-year limited warranty and offers a reliable solution for various piping systems.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: Lift Check Valve

Technical Specifications

• Actuator Type: Spring
• Body Material: Bronze
• Inlet to Outlet Length: 2.94 inches
• Dimensions: 2.38 inches length
• Pressure Class: 125 lb
• Pressure Rating: 250 psi
• Temperature Rating: 353 degrees Fahrenheit
• End Style: Solder
• Domestic/Import: Domestic
