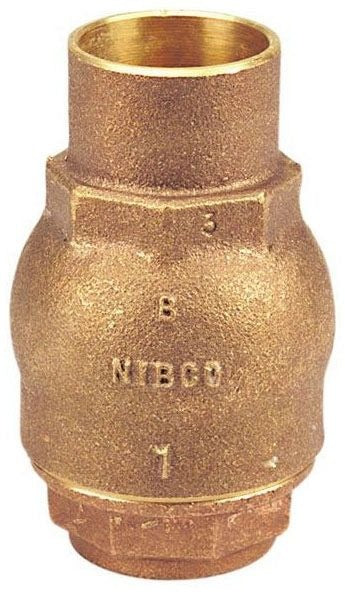

Nibco NJ7Q00B Lift Check Valve 1-1/4 in Solder Bronze

Product Description

The NIBCO NJ7Q00B is a spring-actuated in-line lift check valve from the S-480-Y series, designed to prevent backflow in plumbing and hydronic piping systems. The valve features a bronze body with stainless steel and PTFE trim, providing corrosion resistance in demanding service conditions. It carries a 250 psi working pressure rating and a temperature rating of 353 degrees F, making it suitable for high-temperature hot water and steam applications. At a nominal size of 1-1/4 inches with solder end connections, this valve is installed by licensed plumbers and pipefitters as part of standard in-line piping assemblies.

This check valve is intended for residential and light commercial plumbing and hydronic heating systems where reliable, spring-assisted backflow prevention is required. The solder end style suits copper piping installations common in domestic hot water, hydronic heating loops, and mechanical room piping. Note that this valve is not approved for potable drinking water service and must not be installed in drinking water lines. It is a domestically manufactured product rated at the 125 lb pressure class.

Key Features

• Spring actuator provides positive valve closure without relying on gravity or flow velocity alone
• Bronze body construction offers durability in plumbing and hydronic service environments
• Stainless steel and PTFE trim for chemical resistance and long service life
• 250 psi working pressure rating suitable for high-pressure piping systems
• 353 degrees F temperature rating supports hot water and steam applications
• Solder end connection style for use with standard copper piping
• Domestically manufactured with a 5-year limited warranty

Compatibility

Designed as an OEM-style in-line lift check valve for 1-1/4 inch copper piping systems using solder end connections. Not approved for use in potable drinking water service.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and depressurize the line before soldering or removing existing valves. Ensure the valve is oriented correctly per the flow-direction arrow marked on the body, as lift check valves are directional. Do not install in potable drinking water service per the product restrictions noted in the description.
