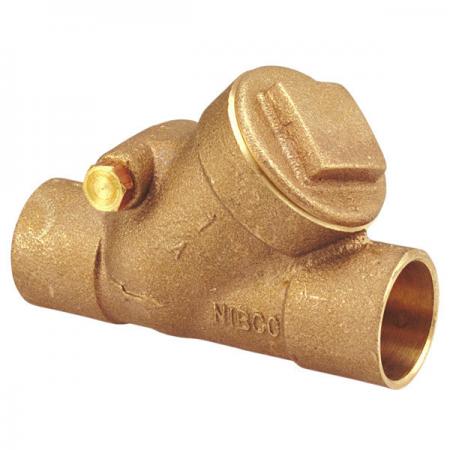

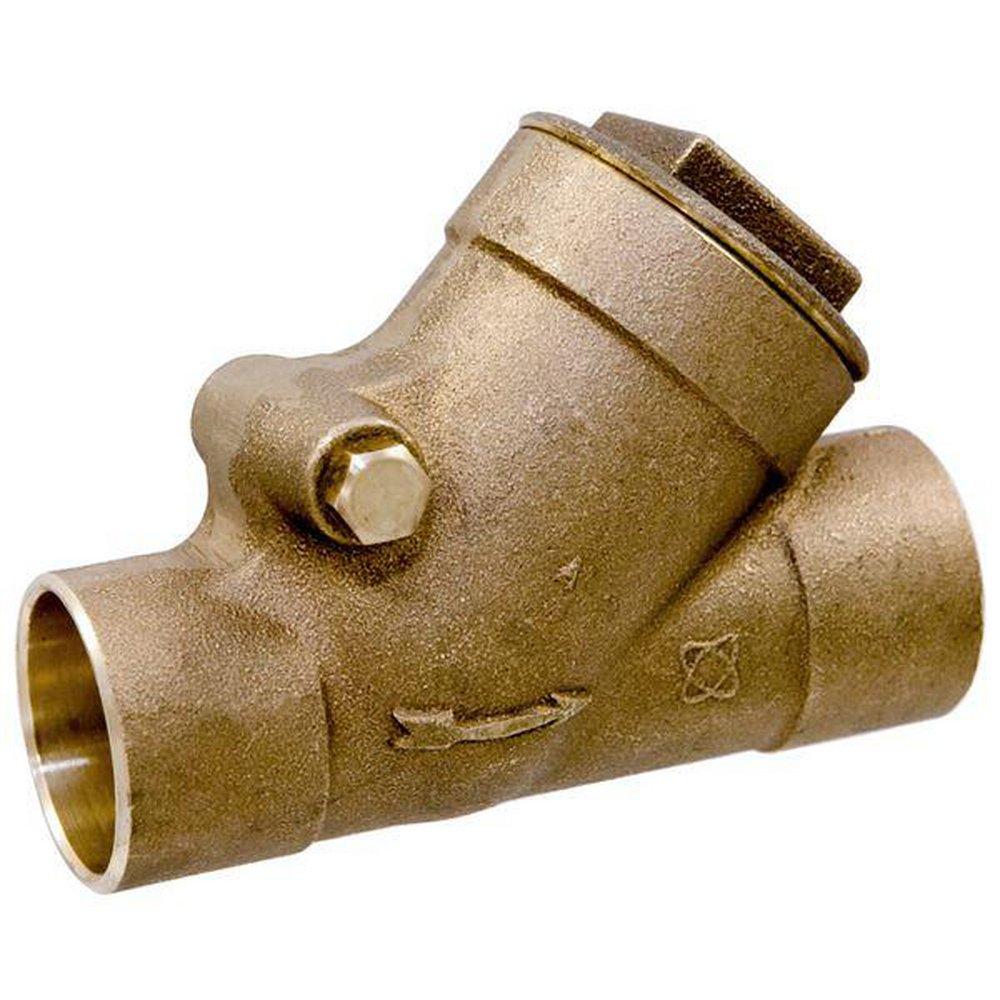

Nibco NJ740XA S-413-Y-LF 1 in. Silicon Bronze Solder Check Valve

Product Description

The Nibco NJ740XA S-413-Y-LF 1 in. Silicon Bronze Solder Check Valve is a reliable component for preventing backflow in various plumbing systems. Constructed with high-quality silicon bronze, it is designed for durability in both commercial and residential applications.

• Prevents backflow
• Constructed of high-quality silicon bronze
• Suitable for commercial and residential use

Product Highlights

This check valve features a Y-pattern design and solder end connections for easy installation. It is suitable for water applications and can handle pressures up to 200 psi.

Product Information

Standard Information

• Brand: Nibco
• MPN: NJ740XA
• UPC: 039923310071

Technical Specifications

• Body Material: Silicon Bronze
• Dimensions: 2.88 in H, 4.06 in L
• Nominal Size: 1 in
• Pressure Rating: 200 psi
• End Style: Solder
• Connection Size: 1 in
• Pressure Class: 125 lb
• Temperature Rating: 300 deg F
• Low Lead Compliance: Yes
• Series: S-413-Y-LF
• Type: Y-Pattern
• Media: Water
• Top to Inlet Center: 2.206 in
• Inlet to Outlet Length: 4.06 in
• Standards/Certifications: MSS SP-80, ANSI/NSF 61, ANSI/NSF 372
