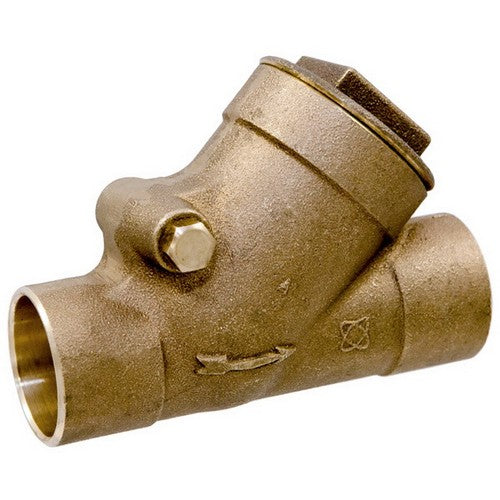

NIBCO NJ740X8 S-413-Y-LF 3/4 Inch Silicon Bronze Solder Check Valve

Product Description

The NIBCO NJ740X8 S-413-Y-LF check valve ensures reliable control of fluid backflow in plumbing systems, employing a solder connection for secure, leak-proof installations. This 3/4-inch valve is designed from silicon bronze, promising robustness and resistance against dezincification. Its Y-pattern configuration enhances fluid dynamics, making it a suitable choice for both commercial and residential setups.

• Lead-free silicon bronze alloy construction ensures safety and durability.
• Features a renewable seat and disc mechanism, promoting valve longevity and easy maintenance.
• Effective in a temperature range up to 300 degrees Fahrenheit, accommodating various fluid applications.

Product Highlights

Designed for low-pressure applications, the NIBCO check valve comfortably handles up to 200 psi of non-shock cold working pressure. It conforms to MSS SP-80 and is certified under NSF/ANSI 61 and 372, making it apt for potable water applications.

Technical Specifications

• Material: Silicon Bronze
• Connection Type: Solder, 3/4 inch
• Pressure Rating: 200 psi non-shock; 100 psi max
• Temperature Rating: Up to 300 degrees Fahrenheit
• Standards: MSS SP-139, NSF/ANSI 61, NSF/ANSI 372
