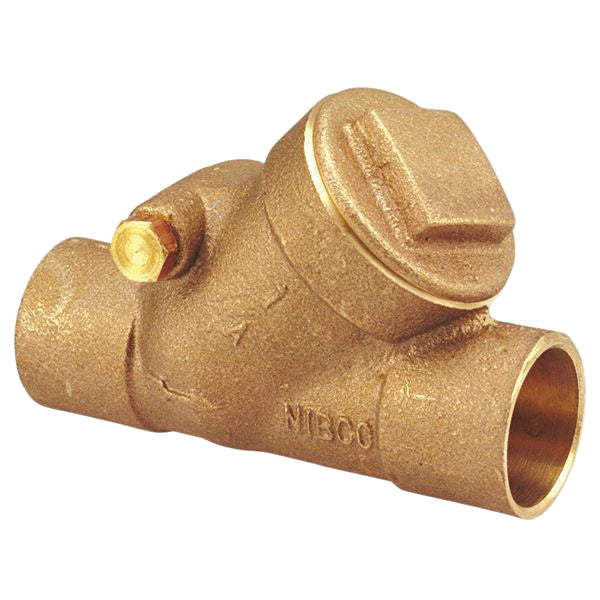

Nibco NJ7400B S-413-Y Y-Pattern Swing Check Valve 1-1/4 in

Product Description

The NIBCO NJ7400B is a swing check valve with a Y-pattern design, made for effective backflow prevention. This valve is constructed from bronze and is designed for solder connections. It has a nominal size of one and one-fourth inches and can handle pressures up to two hundred psi. This valve is suitable for commercial and industrial applications.

• Designed for easy installation with solder connections
• Durable bronze body
• Renewable PTFE disc for reliable sealing

Product Highlights

This swing check valve features a screw-in bonnet which allows for easy access when repairs or replacements are needed. It can be installed in horizontal orientations as well as vertical, with flow directed upwards.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Domestic/Import: Domestic

Technical Specifications

• Body Material: Bronze
• Nominal Size: 1-1/4 in
• End Style: Solder
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Series: S-413-Y
• Softgoods Material: PTFE
• Type: Y-Pattern
