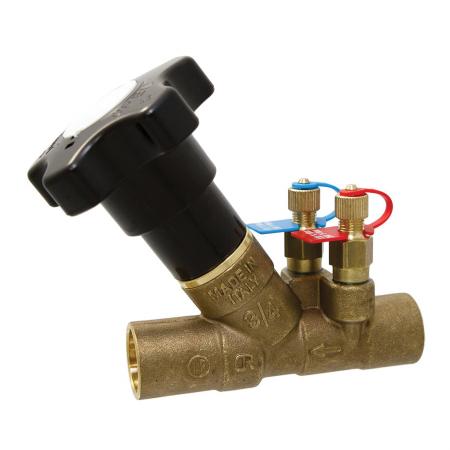

Nibco NJ2X0XC S1810-LF 11/2 Balancing Valve Solder End

Product Description

The NIBCO® NJ2X0XC is a manual balancing valve from the S-1810-LF series. This valve features a solder end design suitable for pipes with a nominal size of one and a half inches. It handles a maximum pressure of three hundred psi and operates effectively within a temperature range of up to two hundred sixty degrees Fahrenheit.

• Dezincification resistant
• EPDM O-rings for durability
• Integral pressure temperature ports for direct readout

Product Highlights

This valve is designed to ensure optimal flow in plumbing systems. It is easy to set and does not require specialized tools or calculators. The manual operation allows for straightforward adjustments according to system requirements.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: Manual

Technical Specifications

• Nominal Size: 1-1/2 inches
• Pressure Rating: 300 psi
• Inlet to Outlet Length: 5.9 inches
• Top to Inlet Center: 4.94 inches
• Temperature Rating: 260 degrees Fahrenheit
• Body Material: Brass
• Trim Material: Brass/PTFE Disc Seat
• Softgoods Material: EPDM
• Series: S-1810-LF
