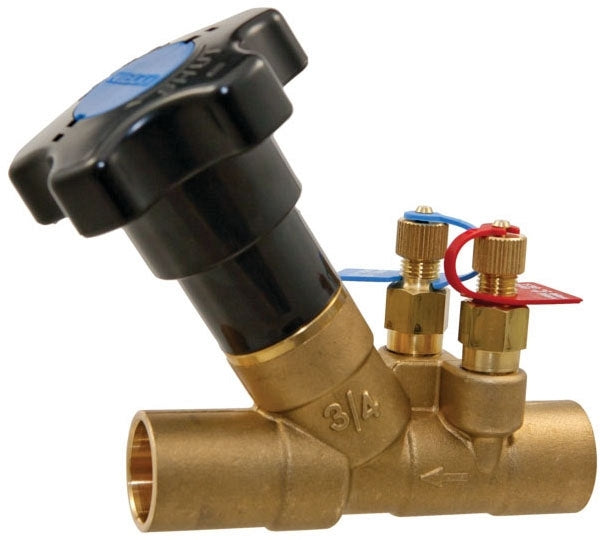

Nibco NJ2X0XA S1810-LF 1 Balancing Valve Solder End

Product Description

The NIBCO NJ2X0XA is a manual balancing valve from the S-1810-LF series. It has a solder end connection and is designed for efficient flow control in plumbing systems. This valve operates at a pressure rating of three hundred psi with a maximum temperature of two hundred sixty degrees Fahrenheit. The inlet to outlet length is four point fifty-seven inches, making it suitable for various installations.

• Manual operation for easy balancing
• Dezincification resistant material
• Integral memory stop for maintenance

Product Highlights

This balancing valve features brass construction with a PTFE disc seat and EPDM O-rings which ensure long-lasting performance. It is designed to prevent leaks and provide reliable service in high-pressure environments.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: S-1810-LF

Technical Specifications

• Body Material: Brass
• Nominal Size: 1 in
• End Style: Solder
• Inlet to Outlet Length: 4.57 in
• Pressure Rating: 300 psi
• Temperature Rating: 260 deg F
• Trim Material: Brass/PTFE
• Softgoods Material: EPDM
