Product Description

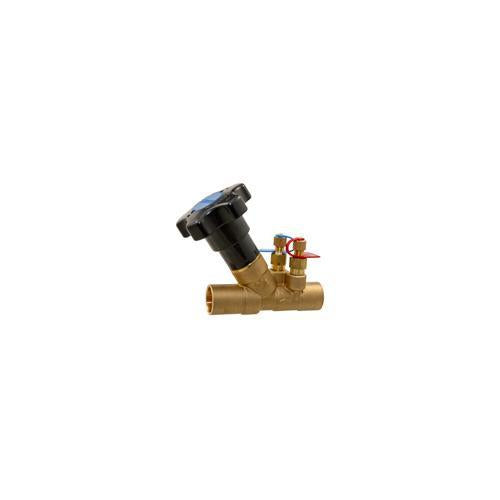

NIBCO NJ2X008 is a balancing valve designed for HVAC and mechanical systems. This valve features a solder end suitable for hot and chilled water applications. It operates under a pressure rating of 300 psi and a temperature rating of 260 degrees Fahrenheit. The inlet to outlet length is four point eighteen inches, with a top to inlet center measurement of four point six inches.
- Fixed orifice design for accurate flow control
- DZR brass construction
- Memory stop feature for easy return to settings after maintenance
Product Highlights
The NIBCO NJ2X008 valve provides precise adjustment for balancing water flow in systems. It integrates features that make installation and maintenance straightforward, ensuring efficient performance for any plumbing or HVAC technician.
Product Information
Standard Information
-
Manufacturer: NIBCO INC
-
UPC: 039923336835
Technical Specifications
-
Body Material: Brass
-
Nominal Size: 3/4 in
-
Inlet to Outlet Length: 4.18 in
-
Top to Inlet Center: 4.06 in
-
Pressure Rating: 300 psi
-
Temperature Rating: 260 deg F
-
Connection Type: Solder
-
Series: S-1810
