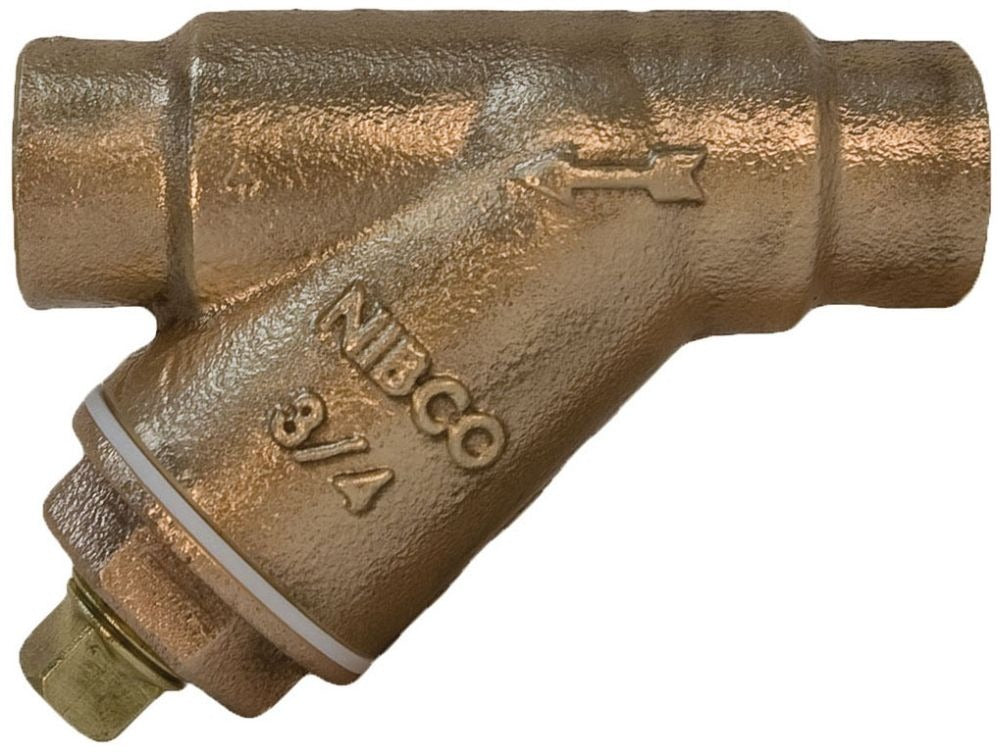

Nibco NJ2RA08 Wye Strainer 3/4 in Solder Bronze

Product Description

The NIBCO NJ2RA08 is a Y-type wye strainer in the S-222-A series, designed to protect downstream piping components by capturing debris and particulate from fluid systems before it reaches valves, pumps, and other equipment. The body is cast bronze rated at 125 psi, and the strainer element is a perforated stainless steel screen that resists corrosion in both hot and cold water service. A 3/8-inch blow-off port with a plug allows periodic cleanout without full system shutdown. This strainer is sized at 3/4 inch nominal with a solder-end connection and is manufactured domestically by NIBCO Inc.

The NJ2RA08 is suited for commercial, mechanical, and industrial piping applications including hydronic heating and cooling systems, plumbing supply lines, and general process piping where fluid cleanliness is critical. The solder connection makes it a straightforward fit for copper tubing installations common in commercial mechanical rooms and residential hydronic systems. It is installed by licensed plumbers and mechanical contractors as part of commissioning or retrofit work on copper pipe systems.

Key Features

• Cast bronze body rated at 125 psi for durable, corrosion-resistant service
• Perforated stainless steel screen element provides reliable filtration and long service life
• 3/8-inch blow-off port with plug allows cleanout access without full line removal
• 3/4-inch nominal solder connection for direct copper tubing installation
• Domestically manufactured by NIBCO Inc. under a 5-year limited warranty
• Y-type body geometry minimizes pressure drop compared to basket-style strainers

Compatibility

Designed as an OEM-style replacement or new-installation wye strainer for 3/4-inch copper solder-joint piping systems in commercial, mechanical, and industrial applications.

Installation Notes

Installation is performed by a licensed plumber or mechanical contractor. Shut off and depressurize the system completely before soldering the strainer into the line, and allow all joints to cool fully before restoring pressure. Orient the strainer body so the screen chamber points downward or horizontally per standard practice to allow sediment to collect at the blow-off port. Refer to applicable IPC and local mechanical codes for required isolation valves and service clearances around the strainer body.
