Product Description

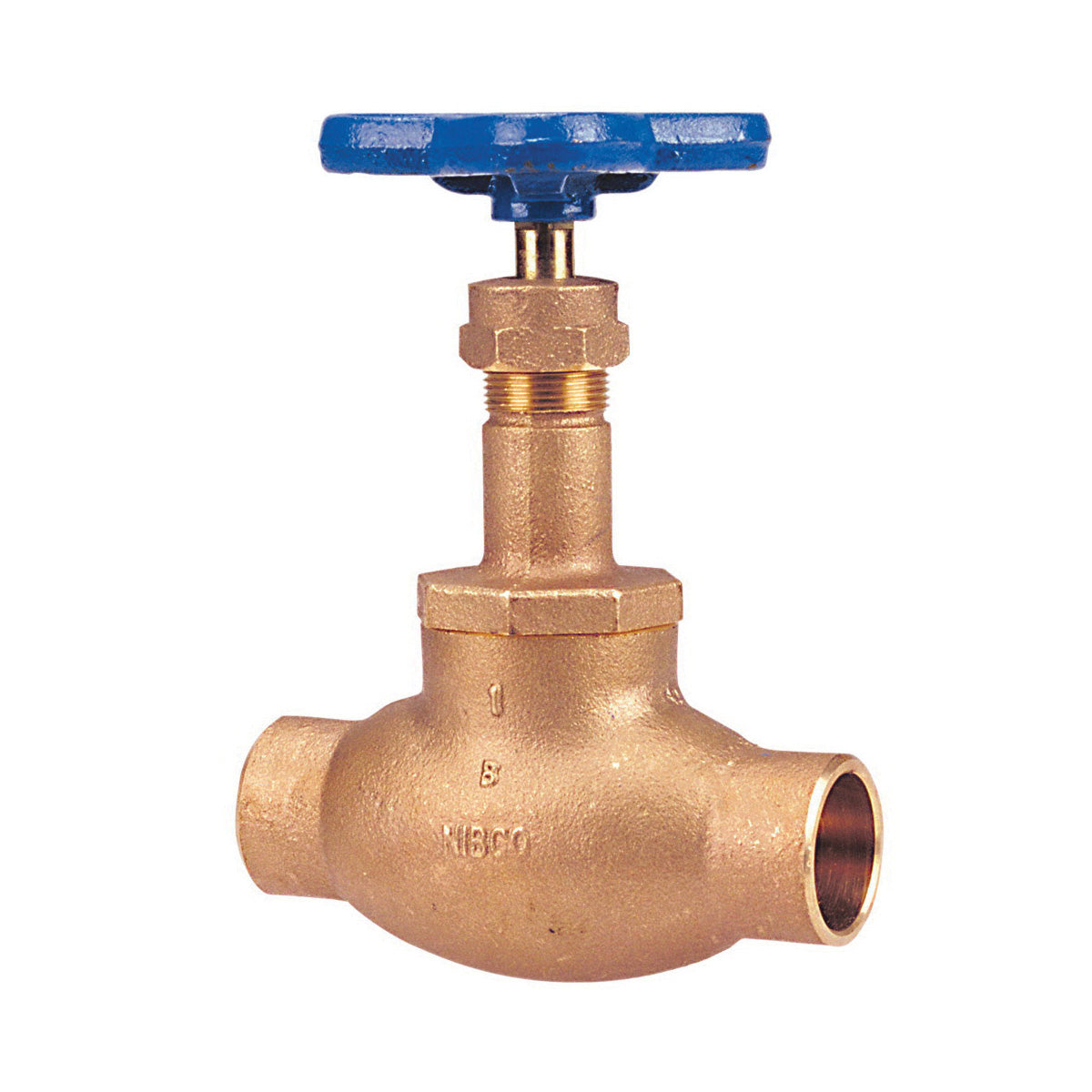

The NIBCO NJ2K005 is a bronze globe valve designed for various applications such as hot and cold water, HVAC, steam, compressed air, and gas. This valve features a screw-in bonnet for easy access and an integral seat for reliable performance. A renewable PTFE seat disc enhances its durability. Its Class 125 solder ends provide a straightforward installation process.
- Suitable for throttling and regulating flow
- Recommended for commercial and industrial use
- Backed by a five-year warranty
Product Highlights
This valve is a versatile and economical choice for mechanical, commercial, and industrial applications. It effectively handles bi-directional service and meets the requirements outlined in NIBCO technical data sheets, chemical resistance guides, and catalogs.
Product Information
Standard Information
-
Manufacturer: NIBCO Inc.
-
Brand: NIBCO
Technical Specifications
-
Actuator Type: Handwheel
-
Body Material: Bronze
-
Trim Material: Silicon Bronze
-
Nominal Size: 3/8 in
-
Pressure Rating: 200 psi
-
Pressure Class: 125 lb
-
Media: Air/Gas/Water
-
Inlet to Outlet Length: 2.38 in
-
Top to Inlet Center: 3.38 in
-
Softgoods Material: Aramid Fiber
-
Series: S-211-Y
