Nibco NJ0J00F Gate Valve 3 in Solder 125 Lb Bronze

Product Description

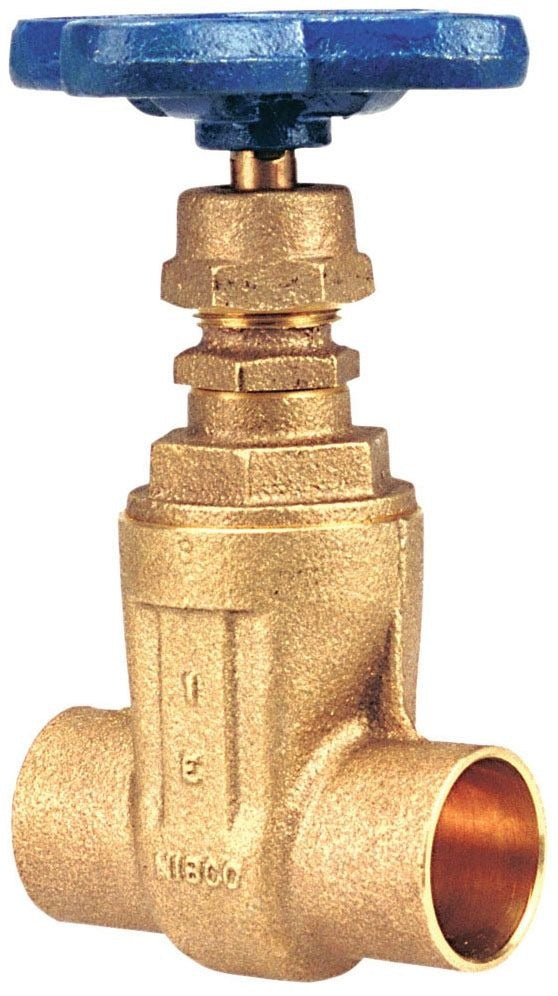

The NIBCO NJ0J00F is a 3-inch bronze gate valve from the S-113 series, designed for full-bore shutoff service in commercial and industrial piping systems. It features a solder end connection, a solid wedge disc, and a non-rising stem with handwheel actuator. The body is cast bronze with silicon bronze trim and aramid fiber softgoods, rated at 200 psi and pressure class 125 lb. The valve measures 4.5 inches inlet to outlet and 10 inches top to inlet center. Licensed plumbing and mechanical contractors install this valve in hot and cold water, HVAC, compressed air, gas, and general utility service lines. Not approved for potable drinking water service per California Section 116875.

The NJ0J00F is suited for commercial and industrial applications where a reliable, full-bore gate valve is required. Typical install scenarios include hydronic heating and cooling systems, steam distribution, compressed air headers, and gas piping where a solder-end bronze valve is specified. Its domestic manufacture and 5-year limited warranty make it a common choice for projects with domestic-content or warranty requirements. This valve is not intended for potable drinking water service.

Key Features

• Solid wedge disc provides positive shutoff with minimal flow restriction when fully open
• Non-rising stem design conserves vertical clearance in tight mechanical spaces
• Solder end connection suits copper piping systems common in HVAC and plumbing
• Silicon bronze trim and aramid fiber softgoods resist corrosion and handle elevated temperatures
• 200 psi working pressure rating, 125 lb pressure class
• Domestically manufactured with a 5-year limited warranty

Compatibility

Designed for use with media including air, gas, and water in commercial and industrial piping systems. Compatible with hot and cold water, HVAC, steam, compressed air, gas, and general utility services. Not for use in potable drinking water service per California Section 116875.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code. Shut off and depressurize the system fully before soldering or servicing the valve. Use standard copper solder-joint techniques and ensure the valve body does not overheat during the soldering process, as excessive heat can damage internal seals and trim. Verify pressure rating compatibility with the system before placing the valve in service.
