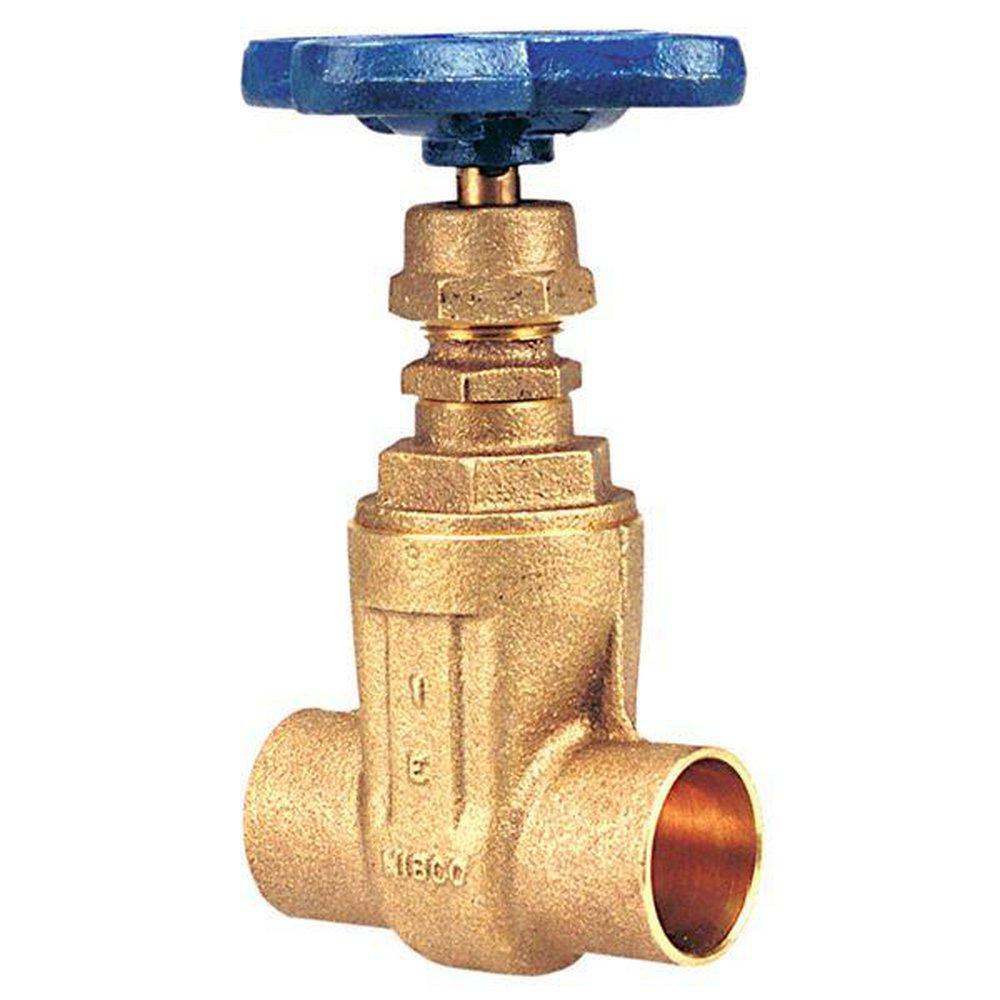

NIBCO NJ0J006 S-113 1/2 in. Bronze Full Port Female Sweat Gate Valve

Product Description

The NIBCO S-113 1/2 inch bronze full port female sweat gate valve is designed for various piping applications. The MPN for this product is NJ0J006. This valve features a bronze body with a non-rising stem, ideal for use in tight spaces.

• Class 125 pressure rating
• Suitable for air, gas, and water
• Compliant for use with commercial and industrial applications

Product Highlights

This gate valve is built with durability in mind, offering a non-rising stem configuration, which helps in reducing the necessary clearance area. The solid wedge design ensures reliable sealing performance. NIBCO's gate valves are suitable for both hot and cold water systems, HVAC applications, and other utility services.

Product Information

Standard Information

• Manufacturer: NIBCO
• MPN: NJ0J006

Technical Specifications

• Nominal Size: 1/2 inch
• Pressure Rating: 200 psi CWP Non-Shock, 125 psi Saturated Steam at 353 degrees F
• Body Material: Bronze
• End Style: Female Solder Cup
• Inlet to Outlet Length: 1.94 inches
• Top to Inlet Center: 3.63 inches
• Actuator Type: Handwheel
• Applications: Hot and cold water, HVAC, steam, compressed air, gas
