Product Description

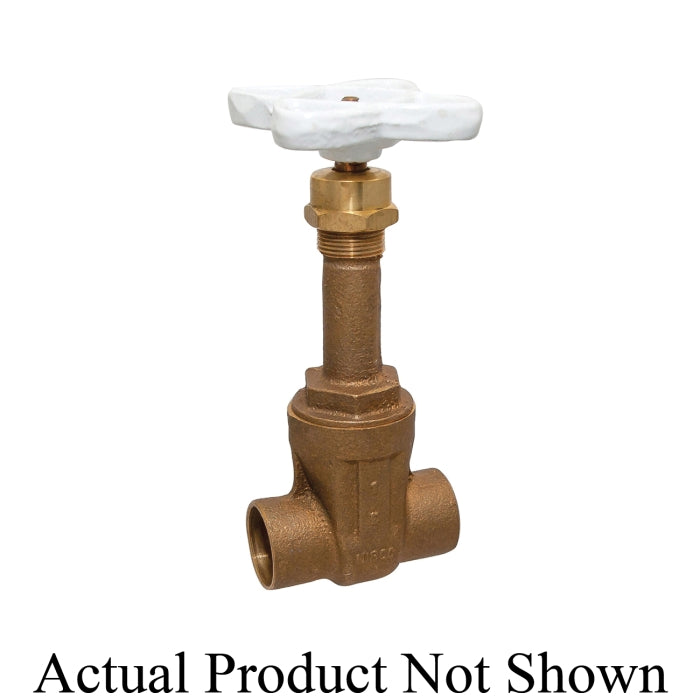

NIBCO® NJ050XD is a gate valve designed for applications in commercial and industrial settings. It features a nominal size of two inches and is suitable for solder connections. The valve is rated for a maximum pressure of three hundred psi and can handle media such as air, gas, and water. The valve measures four inches from inlet to outlet and eleven point five four inches from the top to the inlet center.
- Media compatibility: Air, gas, and water
- Pressure rating: 300 psi
- Temperature rating: 300 degrees Fahrenheit
Product Highlights
This valve offers reliable performance and durability in various environments.
Product Information
Standard Information
-
Manufacturer: NIBCO INC
-
MPN: NJ050XD
Technical Specifications
-
Body Material: Bronze
-
Trim Material: Silicon Bronze
-
Softgoods Material: Aramid Fiber/Graphite
-
Dimensions: 10.78 inches high
-
End Style: Solder
-
Inlet to Outlet Length: 4 inches
-
Pressure Rating: 300 psi
-
Temperature Rating: 300 degrees Fahrenheit
-
Series: S-111-LF
-
Domestic/Import: Domestic
