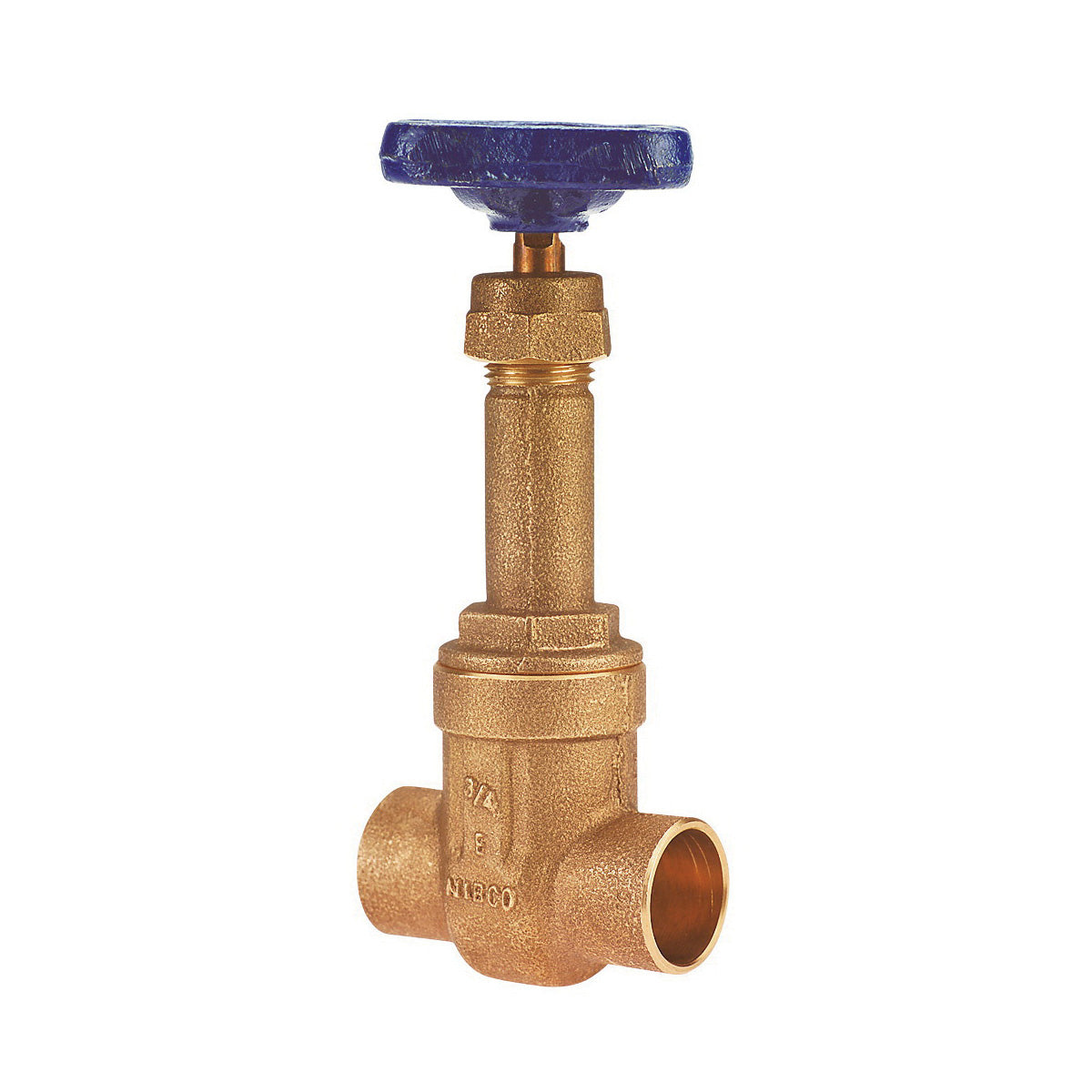

NIBCO NJ05006 Gate Valve, 1/2 in Nominal, Solder End Style, 125 lb

Product Description

The NIBCO NJ05006 is a bronze gate valve suitable for various applications. This valve features a screw-in bonnet designed for low-maintenance service. It has solder ends that simplify installation. The gate valve supports a broad range of services due to its solid wedge and integral seats. It serves well in situations where shutoff is needed with a clear visual indicator of its state. This valve is ideal for commercial and industrial uses including hot and cold water, HVAC systems, steam, and gas services.

• Bronze body material for durability.
• 200 psi pressure rating suitable for various applications.
• Aramid fiber softgoods ensure reliable operation.

Product Highlights

The NIBCO gate valve is versatile, economical, and backed by a five-year limited warranty.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Type: Gate Valve

Technical Specifications

• Actuator Type: Handwheel
• Material: Bronze
• Nominal Size: 1/2 in
• End Style: Solder
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Inlet to Outlet Length: 1.94 in
• Top to Inlet Center: 4.81 in
• Softgoods Material: Aramid Fiber
