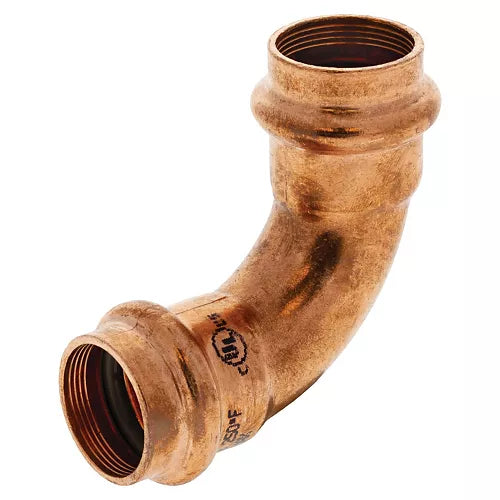

Nibco NIB-PC7/8-90 Pressacr 90 Degree Elbow Press X Press 7/8 Inches Od Wrot Copper

Product Description

The NIBCO NIB-PC7/8-90 is a wrot copper PressACR 90-degree elbow fitting designed for use in air conditioning refrigerant piping systems. It features a 7/8 inch outer diameter and uses a press x press connection method, making it a reliable choice for HVAC technicians and refrigeration contractors who need fast, consistent joints without open flame. The fitting includes an inboard bead and a gray HNBR O-ring. When a pressing tool is applied, it compresses the O-ring tightly against the tube wall, creating a secure, leak-resistant seal in seconds. No solder, no flux, and no torch are required. This dramatically reduces installation time and eliminates fire hazards on job sites where open flame is restricted or prohibited. The 90-degree angle allows technicians to change the direction of a refrigerant line efficiently. This elbow is suited for applications where a longer sweep radius is needed compared to a standard short-radius elbow. Wrot copper construction delivers excellent corrosion resistance and long service life in refrigerant and HVAC systems. The fitting is NSF certified and UL Recognized, meeting strict industry standards for safety and performance. It is manufactured in the USA and carries no Prop 65 concerns. The NIB-PC7/8-90 is compatible with standard ACR copper tubing and works with common press tools available to most HVAC contractors. Its compact dimensions and precise engineering make it easy to install in tight mechanical spaces. HVAC technicians, refrigeration mechanics, and plumbing professionals will find this fitting to be a dependable component in residential, commercial, and light industrial refrigerant piping systems. It is sold individually as a single unit.

• Press x press connection requires no flame, solder, or flux for a fast and safe installation
• Gray HNBR O-ring with inboard bead creates a tight, reliable seal under pressing tool pressure
• NSF certified and UL Recognized wrot copper construction made in the USA

Product Highlights

The NIBCO NIB-PC7/8-90 PressACR 90-degree elbow delivers a fast, flame-free connection method for 7/8 inch OD copper refrigerant lines. Its wrot copper body and HNBR O-ring seal provide dependable performance in HVAC and refrigeration applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NIB-PC7/8-90

Technical Specifications

• Material: Copper (Wrot)
• Size: 7/8 inches OD
• Connection Type: Press x Press
• Fitting Angle: 90 Degrees
• O-Ring Material: HNBR (Gray)
• Height: 1.24 inches
• Length: 2.61 inches
• Width: 2.61 inches
• Weight: 0.223 pounds
• Country of Origin: USA
• NSF Certified: Yes
• Approvals: UL Recognized
• UPC: 039923413383
• Unit of Measure: Each
