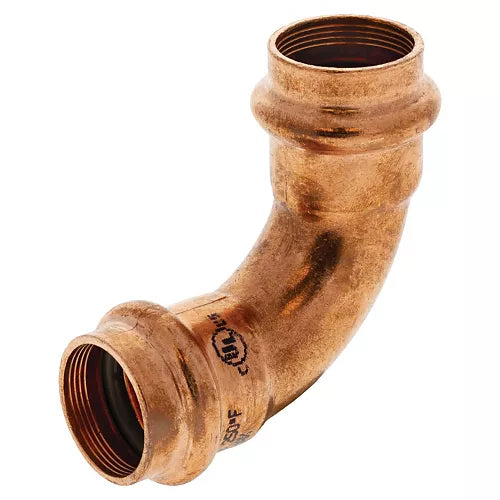

Nibco NIB-PC3/8-90 Pressacr 90 Degree Elbow Press X Press 3/8 Inches Od Wrot Copper

Product Description

The NIBCO NIB-PC3/8-90 is a wrot copper PressACR 90-degree elbow fitting designed for use in refrigerant and air conditioning piping systems. This press-style fitting connects 3/8 inches OD copper tubing and changes pipeline direction by 90 degrees. It uses press x press connections, meaning both ends accept a pressing tool for a fast, flame-free installation. No solder, no flux, and no open flame are required, making it a safer and faster option on job sites where hot work permits are restricted or time is limited. HVAC technicians and refrigeration mechanics rely on press fittings like this one to speed up system installations and service calls without sacrificing joint integrity. The NIB-PC3/8-90 features an inboard bead and a gray HNBR O-ring. When a pressing tool is applied, the tool compresses the fitting body and drives the O-ring tightly against the tube wall, creating a clean, leak-resistant seal in seconds. HNBR, or hydrogenated nitrile butadiene rubber, is the correct O-ring material for use with ACR refrigerants, including R-410A and R-22 systems. The wrot copper construction provides excellent pressure and temperature ratings appropriate for refrigerant piping applications. This elbow is NSF certified and UL Recognized, confirming it meets the performance and safety standards that commercial and residential HVAC projects require. The fitting is manufactured in the USA and sold individually. Its compact profile and precise dimensions, including a length of 1.74 inches and a width of 1.44 inches, make it easy to work with in tight mechanical spaces. For jobs where a longer directional sweep is needed, this fitting delivers a reliable 90-degree change of direction with a professional-grade press connection on each end.

• Press x press connections on both ends allow tool-crimped, flame-free installation in seconds
• HNBR O-ring is compatible with ACR refrigerants including R-410A systems
• NSF certified and UL Recognized for use in commercial and residential HVAC applications

Product Highlights

The NIBCO NIB-PC3/8-90 delivers a fast, flame-free 90-degree connection for 3/8 inches OD copper refrigerant lines. Its press x press design and HNBR O-ring provide a dependable seal that meets NSF and UL standards.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NIB-PC3/8-90

Technical Specifications

• Material: Wrot Copper
• Connection Type: Press x Press
• Fitting Angle: 90 Degrees
• Tube OD Size: 3/8 inches
• O-Ring Material: HNBR
• Length: 1.74 inches
• Width: 1.44 inches
• Height: 0.62 inches
• Weight: 0.049 pounds
• NSF Certified: Yes
• Approvals: UL Recognized
• Country of Origin: USA
• Sold As: Each
• UPC: 039923418104
