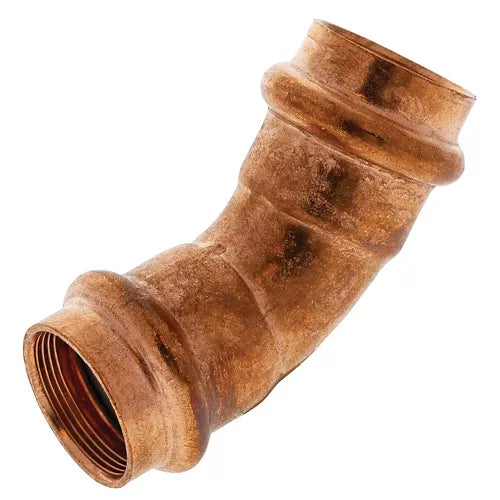

Nibco NIB-PC3/4-45 Pressacr 45 Degree Elbow Press X Press 3/4 Inches Od Wrot Copper

Product Description

The NIBCO NIB-PC3/4-45 is a 3/4 inches OD wrot copper PressACR 45-degree elbow fitting designed for press x press connections in ACR (air conditioning and refrigeration) piping systems. This fitting changes the direction of a pipeline by 45 degrees and is the preferred choice when a longer, sweeping turn is needed rather than a sharp 90-degree bend. It is built from wrot copper, which is a wrought copper alloy known for its durability, pressure resistance, and compatibility with refrigerant lines and HVAC systems. HVAC technicians, mechanical contractors, and plumbing professionals rely on this type of fitting for efficient, flame-free installations. The NIB-PC3/4-45 features an inboard bead and a gray HNBR O-ring that locks into position when a standard press tool is applied. The pressing tool compresses the O-ring tightly against the copper tube, creating a leak-free, mechanically sound seal in seconds. No flame, no solder, and no flux are required at any step of the installation. This makes the fitting a strong choice for work in occupied buildings, tight spaces, or any area where open flame is restricted or unsafe. The press connection system reduces installation time significantly compared to traditional soldering methods, lowering labor costs on both small and large jobs. The fitting is NSF certified and manufactured in the USA, meeting the quality and safety standards expected on commercial and residential HVAC and refrigeration projects. With a height of 1.12 inches, a length of 2.42 inches, and a width of 1.74 inches, it is a compact fitting suited for tight mechanical spaces. This elbow pairs with standard 3/4 inches OD copper tubing and is compatible with major press tool brands used in the trade.

• Flame-free press x press connection using HNBR O-ring and inboard bead design for fast, secure seals
• Wrot copper construction provides excellent pressure resistance and long-term durability in ACR and HVAC systems
• 45-degree angle allows for longer sweep direction changes, reducing flow restriction in refrigerant and fluid lines

Product Highlights

The NIBCO NIB-PC3/4-45 delivers a fast, no-flame press connection in wrot copper, purpose-built for 3/4 inches OD ACR tubing. It is NSF certified and made in the USA, making it a reliable choice for professional HVAC and refrigeration installations.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NIB-PC3/4-45

Technical Specifications

• Material: Wrot Copper
• Fitting Size: 3/4 inches OD
• Connection Type: Press x Press
• Elbow Angle: 45 Degrees
• O-Ring Material: HNBR
• Height: 1.12 inches
• Length: 2.42 inches
• Width: 1.74 inches
• Weight: 0.149 pounds
• Country of Origin: USA
• NSF Certified: Yes
• UPC: 039923413475
• Sold As: Each
