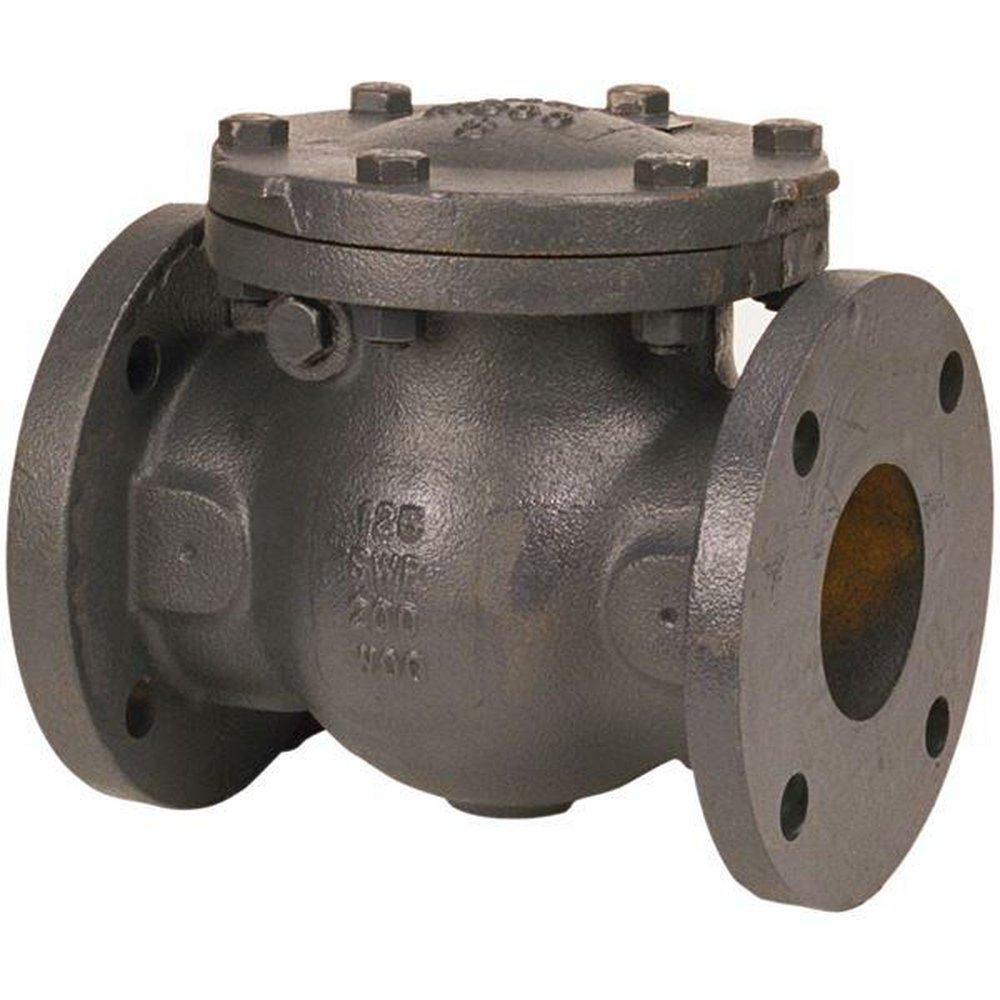

NIBCO NHE3U0H F-918-B 4 in. Cast Iron Flanged Check Valve

Product Description

The NIBCO F-918-B, part number NHE3U0H, is a four-inch cast iron flanged check valve. This valve is designed to prevent backflow automatically when fluid reverses direction. It is suitable for steam, water, oil, and gas applications. The flanged end connections allow for easy installation.

• Valve pressure rating is 200 psi
• Constructed from cast iron with bronze mounted trim
• Uses renewable seat and disc

Product Highlights

The NIBCO check valve features a bolted bonnet for easy maintenance and is certified by MSS SP-71 Type 1. It can be installed in both horizontal and vertical orientations. This valve is designed for commercial and industrial applications.

Product Information

Standard Information

• Brand: NIBCO
• Part Number: NHE3U0H

Technical Specifications

• Connection Size: 4 inches
• Connection Type: Flanged
• Dimension: 11.5 inches length
• Disc Material: Bronze
• Flow Coefficient: 605 Cv
• Pressure Class: Class 125
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 150 degrees F
