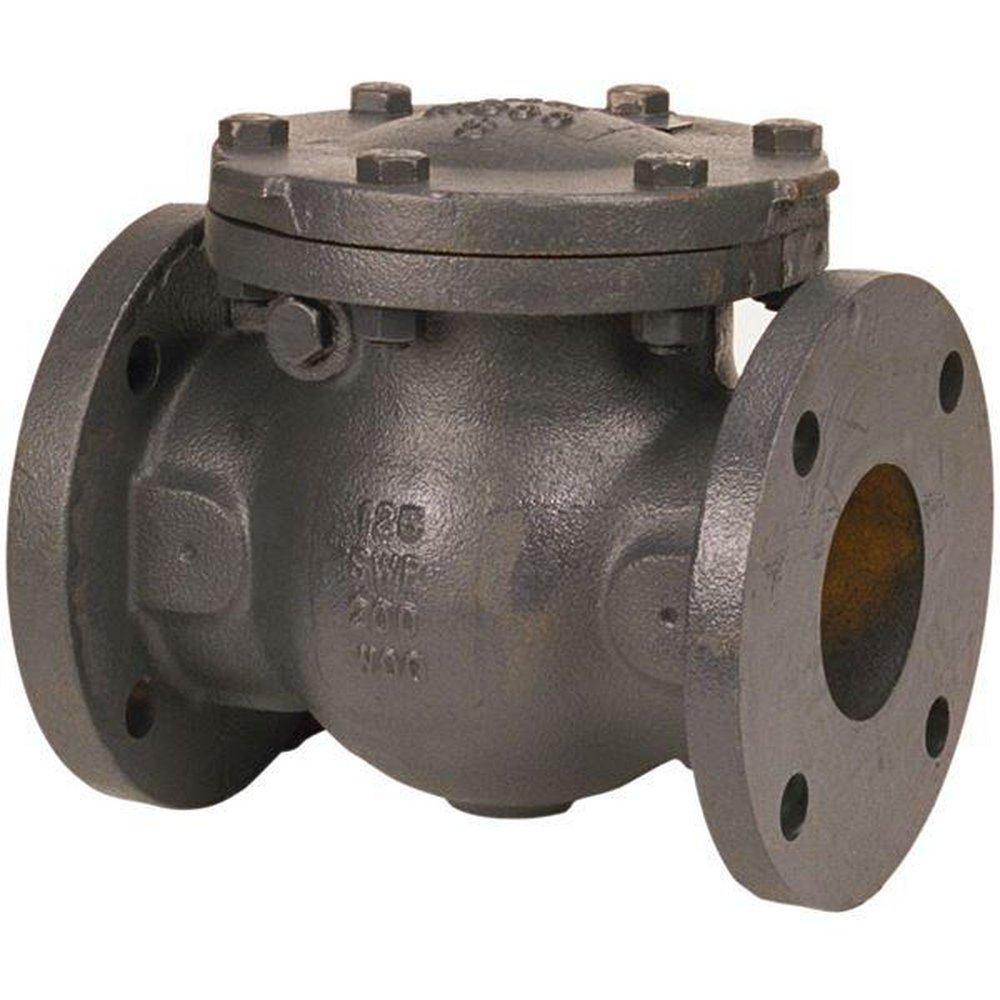

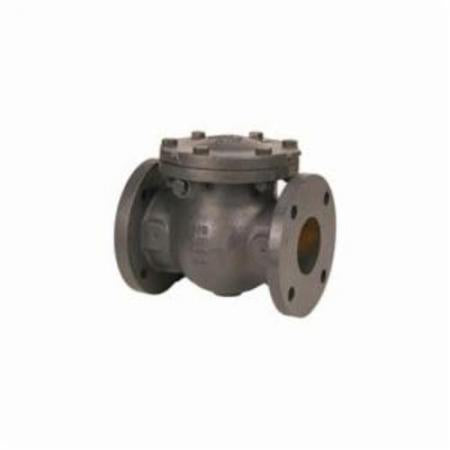

Nibco NHE300L F-918-B 8 Inch Cast Iron Flanged Check Valve

Product Description

This Nibco NHE300L F-918-B Check Valve is designed for the efficient management of backflow in various water and steam applications. The 8-inch valve features a cast iron body and a bolted bonnet, making it robust and easy to maintain.

• Horizontal swing check
• Bolted bonnet
• Metal seated

Product Highlights

The Nibco cast iron horizontal swing check valve is designed with a renewable seat and disc, preventing backflow by automatically closing when fluid reverses direction. The valve is Class 125 flanged with a bronze-mounted trim.

Product Information

Standard Information

• Brand: Nibco
• MPN: NHE300L

Technical Specifications

• Nominal Size: 8 in
• End Style: Flanged
• Pressure Rating: 200 psi
• Pressure Class: 125 lb
• Temperature Rating: -20 to 150 deg F
• Body Material: Cast Iron
• Trim Material: Bronze
• Inlet to Outlet Length: 19-1/2 in
• Top to Inlet Center: 9.44 in
• Softgoods Material: Synthetic Fiber
• Actuator Type: Lever Handle
• Media: Steam
• Low Lead Compliance: No
• Standards/Certifications: MSS SP-71 Type 1 certified
• Manufacturer: Nibco Inc
