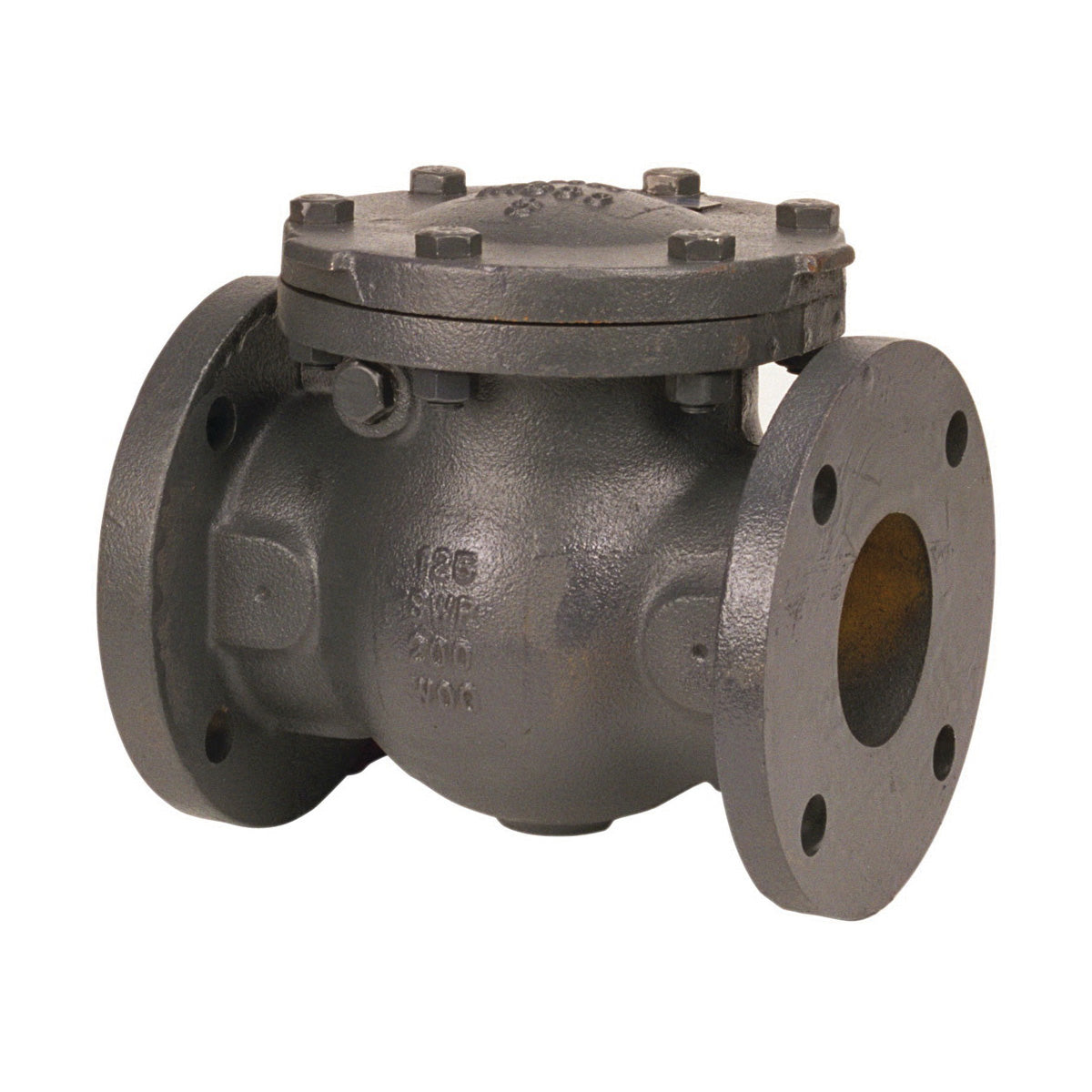

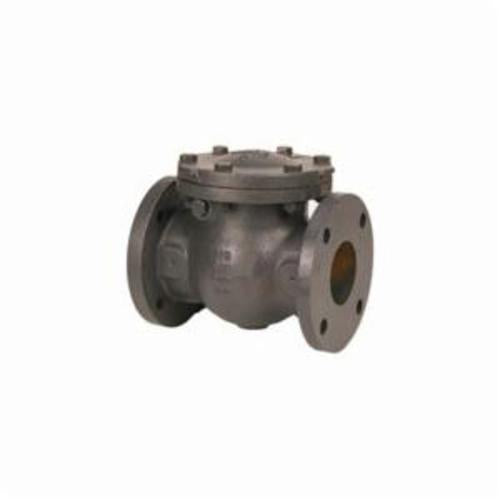

NIBCO NHE300K Swing Check Valve 6 in Nominal Flanged End Style 125 lb

Product Description

The NIBCO NHE300K is a cast iron horizontal swing check valve. This valve prevents backflow by automatically closing when fluid reverses direction. It is suited for commercial and industrial steam, water, oil, and gas services.

• Class 125 flanged iron body
• Bronze mounted trim for durability
• Equipped with a bolted bonnet for easy maintenance

Product Highlights

The valve features flanged end connections for straightforward installation. It can be installed in horizontal or vertical positions with flow moving up. NIBCO check valves come with a five-year limited warranty.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Part Number: NHE300K

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Cast Iron
• Nominal Size: 6 in
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 150 deg F
• Inlet to Outlet Length: 14 in
• Top to Inlet Center: 8 in
• Trim Material: Bronze
• Softgoods Material: Synthetic Fiber
• Media: Steam
• Low Lead Compliance: No
